SPECIFICATIONS

Battery Capacity: 20AH

Battery Position: Integrated Battery

Braking System: Hydraulic Disc Brake

Brand Name: COSWHEEL

Certification: CE/FCC/ROHS/MSDS/UN38.3

Charging Time: >3 hours

Display: LCD Display

Foldable: NO

Frame Material: Aluminum Alloy

Gears: 7 Speed

Keyword: E Bike Electric Bicycle

Max Speed: 30-50Km/h

Model Number: T20

Motor position: Rear Hub Motor

Place of Origin: Guangdong, China

Power Supply: Lithium Battery

Product name: Fat Tire Electric Bike

Range per Power: > 60 km

Riding modes: Pure electric /Pedal-assist /Human power

Smart Type: Electronic,Digital

Torque: 60-70 Nm

Voltage: 48 V

Wheel Size: 20"

Products Description

Product Paramenters

Brand	COSWHEEL
Model	COSWHEEL T20
Key Features	Original independent and autonomous design ,IP54 waterproof level for the entire e-bike,

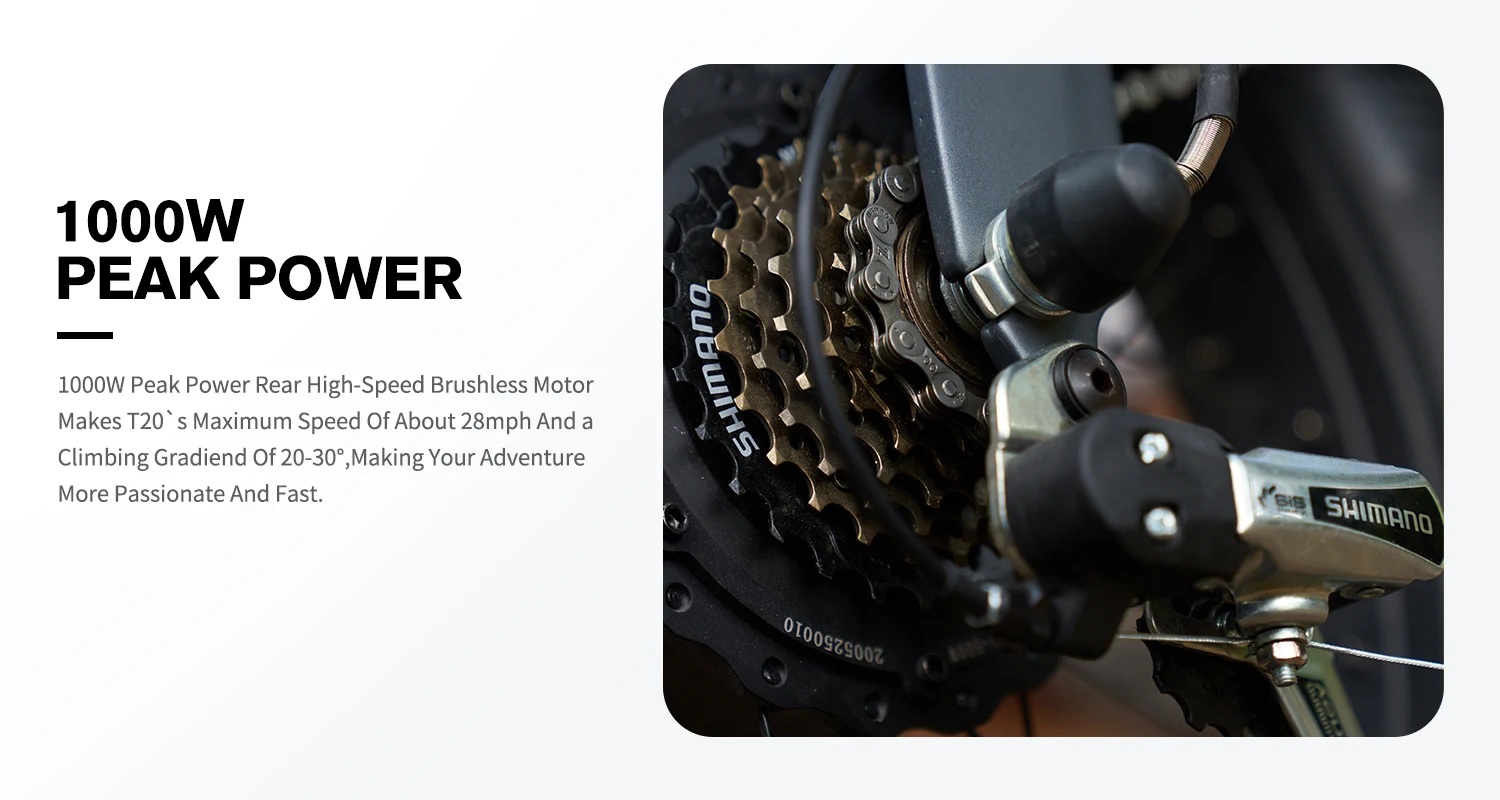

Motor	500W rated power rear high-speed motor ,1000w peak power
Shock	Full front and rear suspension， Hole center 180mm, 1800 pounds, black, 180mm Suspension Travel
Materials	Aviation aluminum alloy frame 6061,200000 vibration tests are not easily deformed, far exceeding European standards
Brake system	E-ABS front and rear double disc brake system,Power-off brake, line length 1300MM

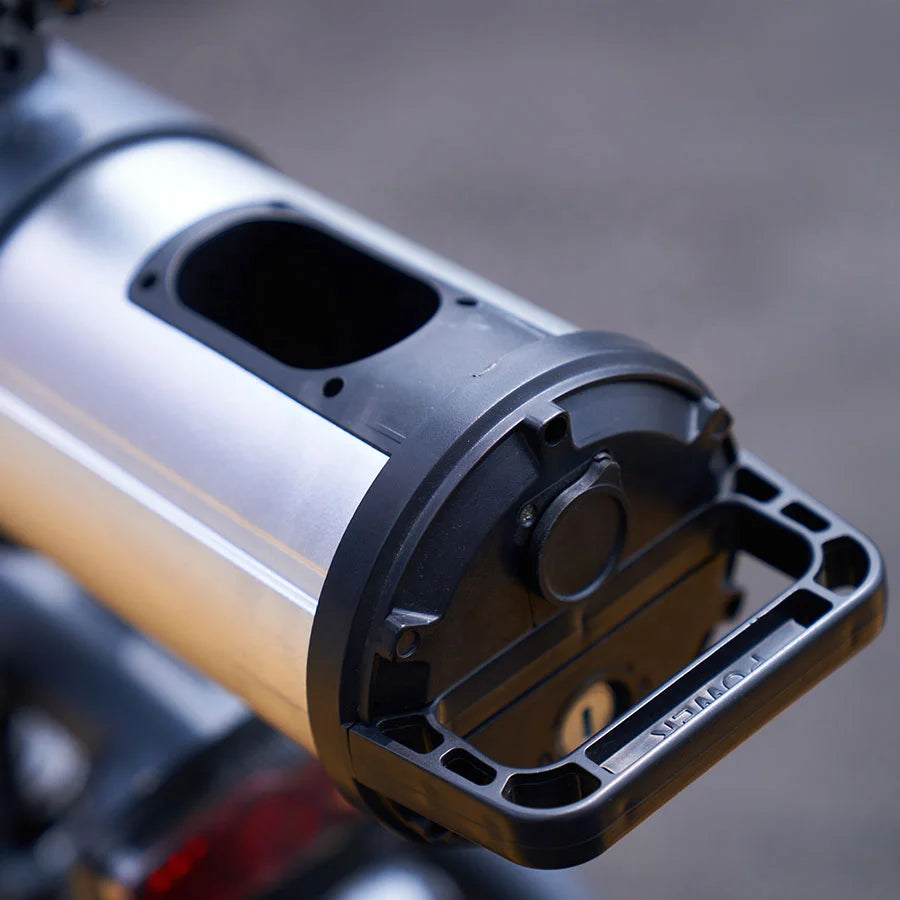

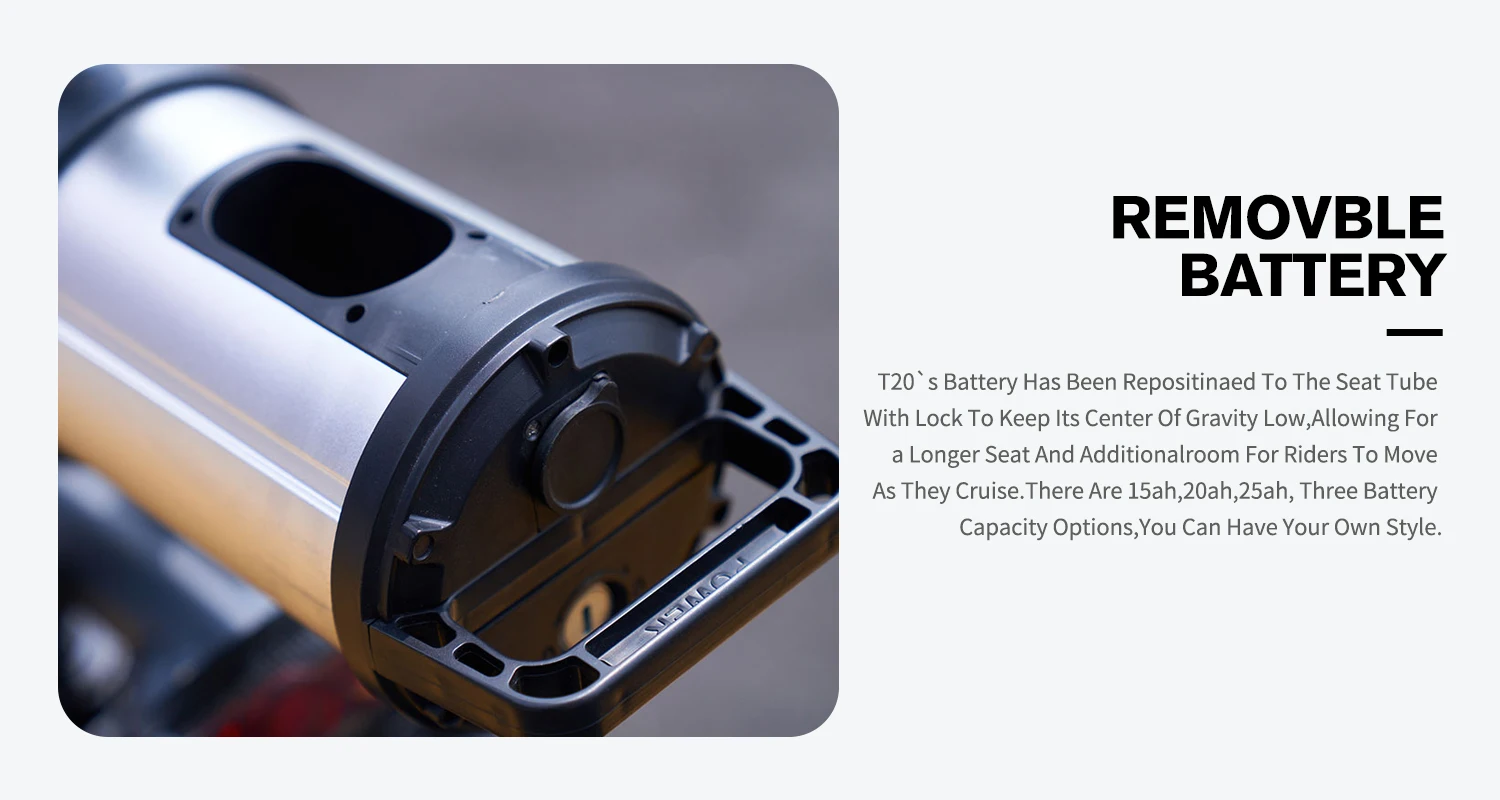

Battery	removbale battery pack equipped battery lock,10Ah/15Ah/20Ah 18650 Li-ion battery optioal
Torque	50NM
Climb Gradient	About 25°
Max speed	45km/h (28mph),Can speed limit 25KM/H

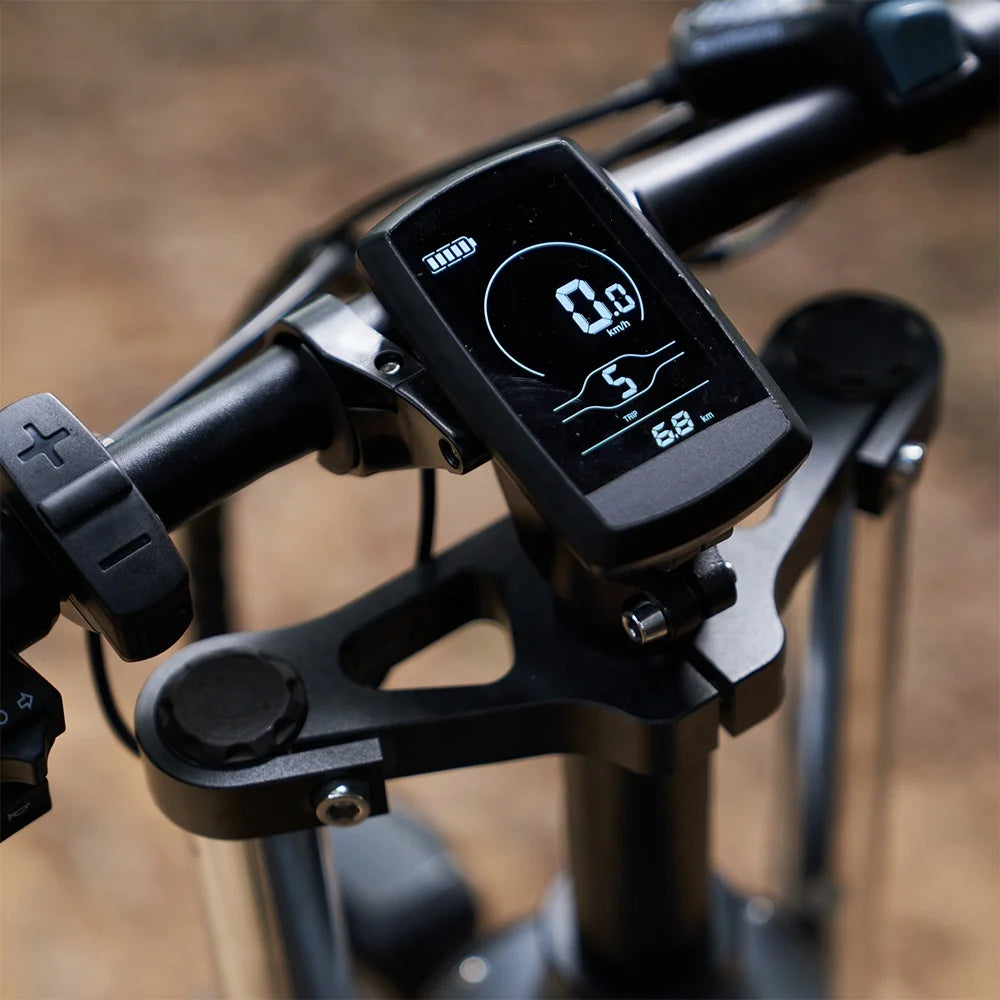

Meter	Large 3-inch Color LCD Instrument Display,Cable length 1300mm, SM-5Y, 5 pole cable with USB
Turn signal	Tail light with left and right turn signal

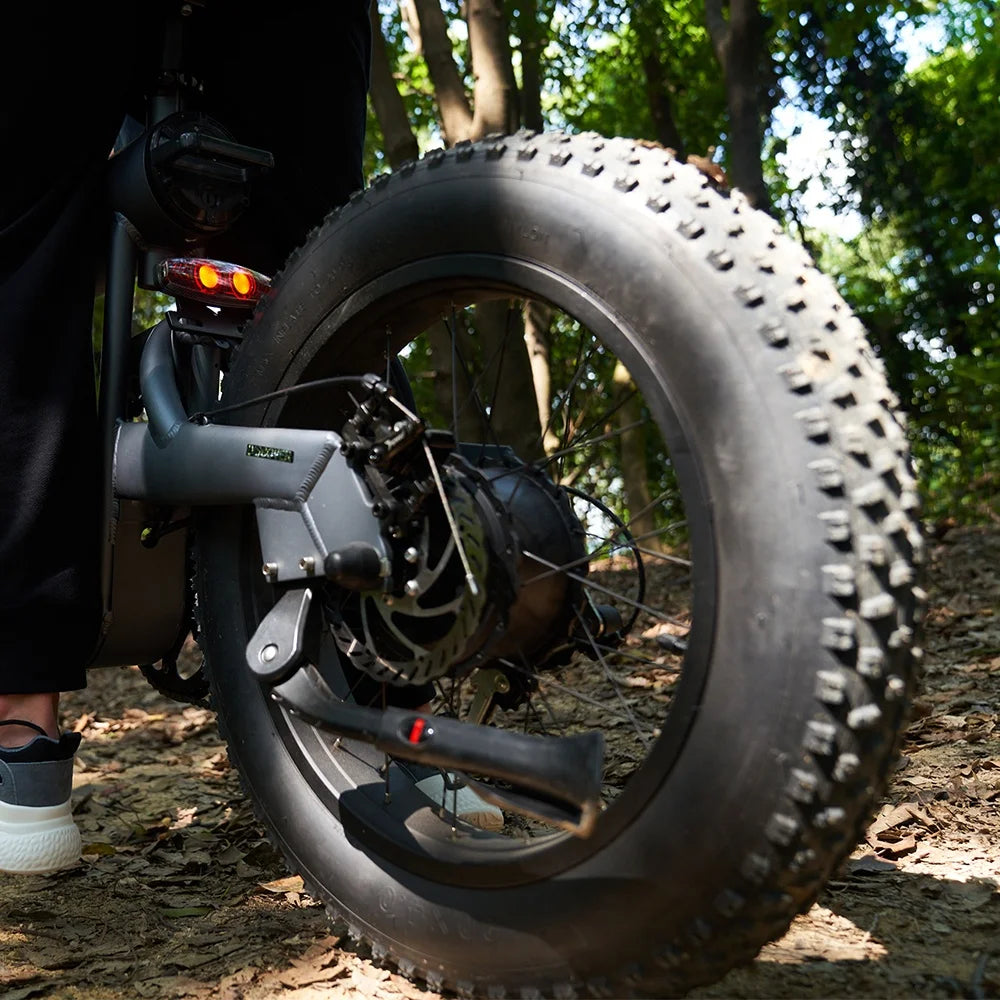

Tire size	Black off-road Tire 20*4.0 H5176 30TPI with AV+ Liner Belt

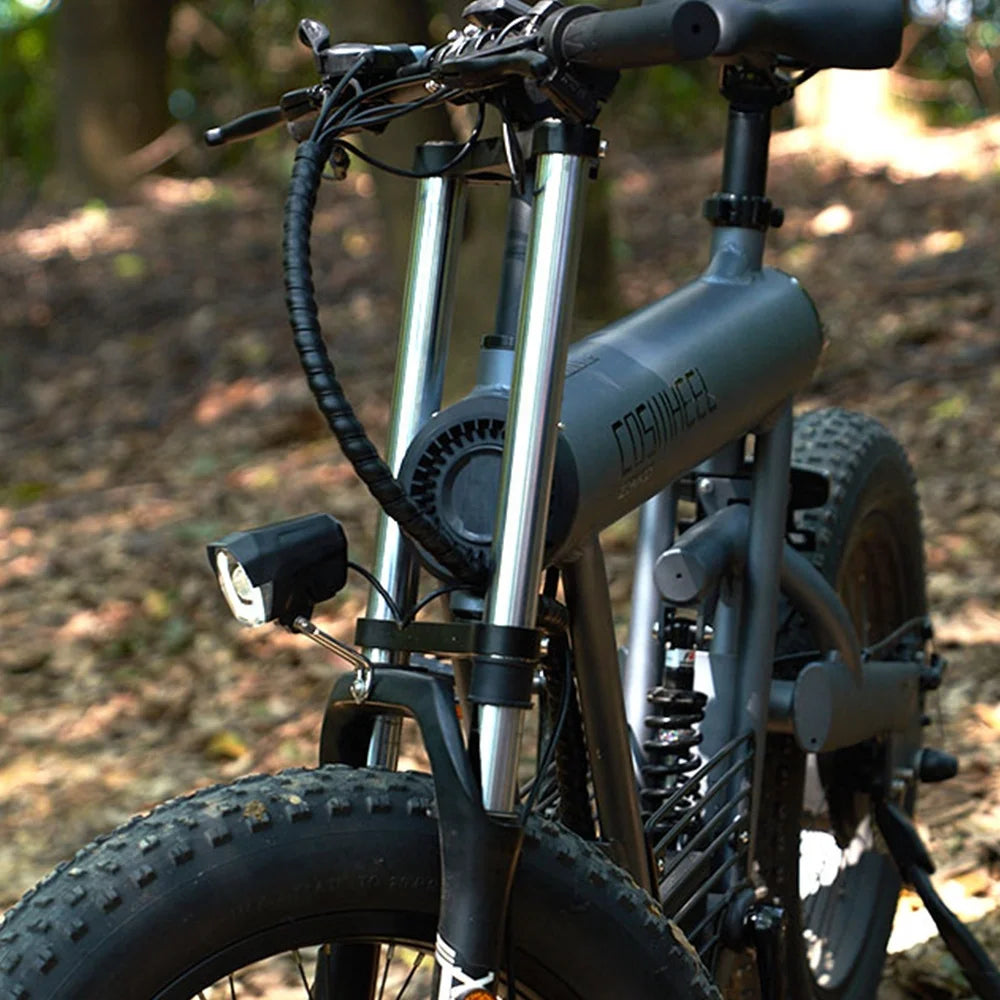

Front fork	Anti-oxidation 20-inch double-shoulder shock-absorbing front fork
Headlights	LED night lighting system with wide angle design
Charger	Add defense backflow function, voltage 110V-240V
Controller	Maximum load 22A current
Chain wheel crank	46T, all aluminum one-piece, sand black crank
Pedal	Plastic folding pedal with reflector, axle 9/16 X2
Curved handle	Sand black big swallow handle, φ620*31.8*H:30

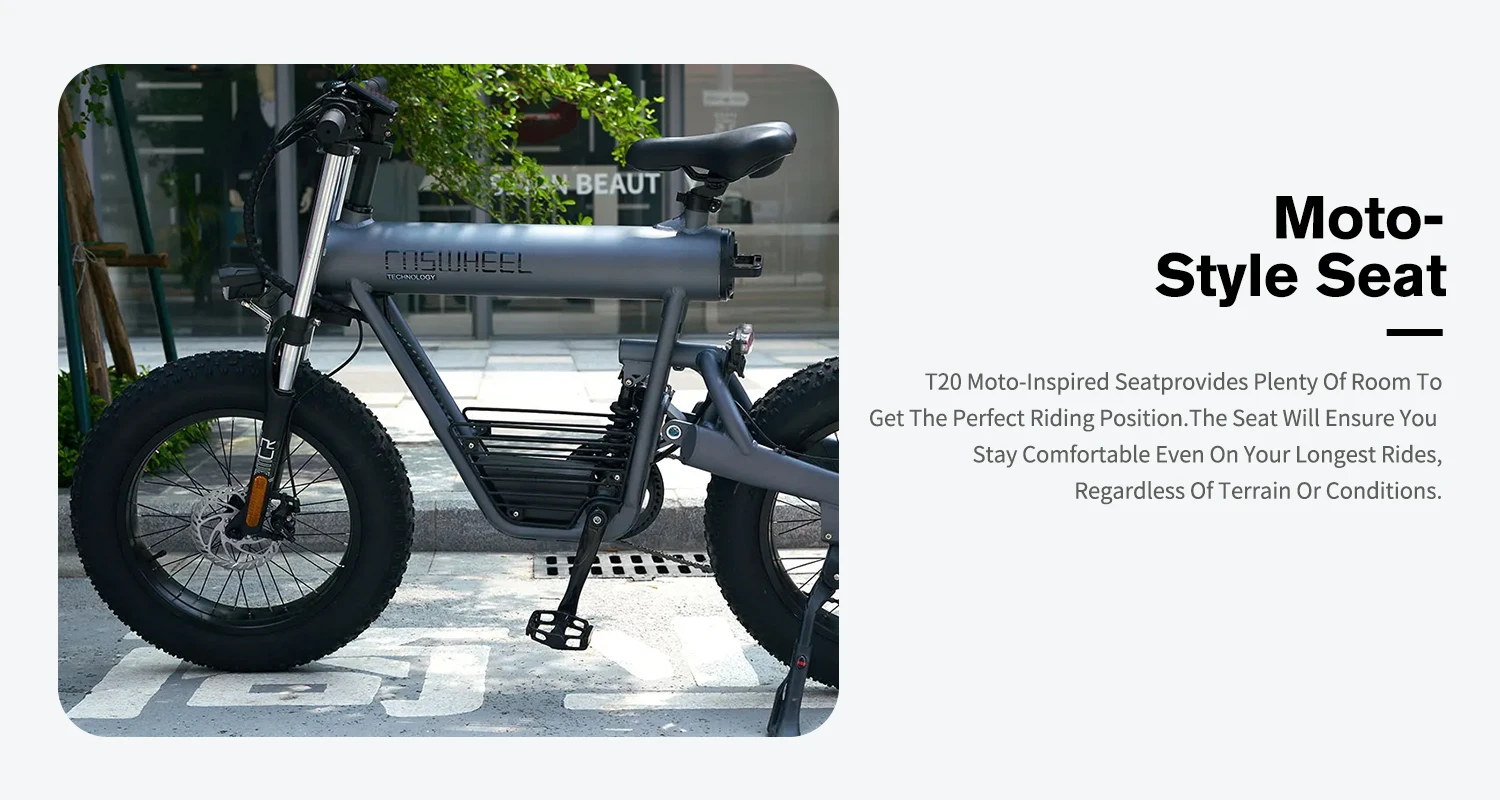

Seats	Adjustable seat height，ED iron bow 7.0 clip-free, carry handle section bracket, black leather surface + hollow at the car black leather + tail car black
Chain	7-speed rust-proof, S33GY*128L

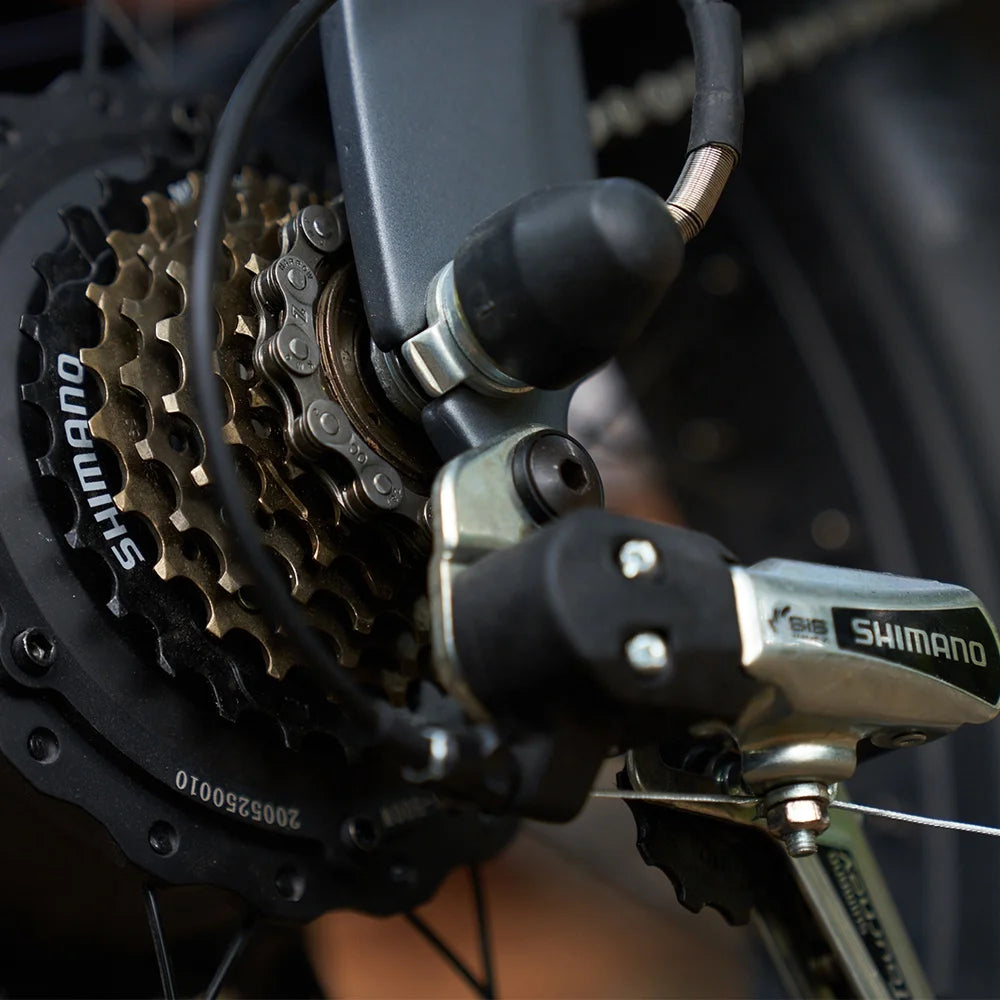

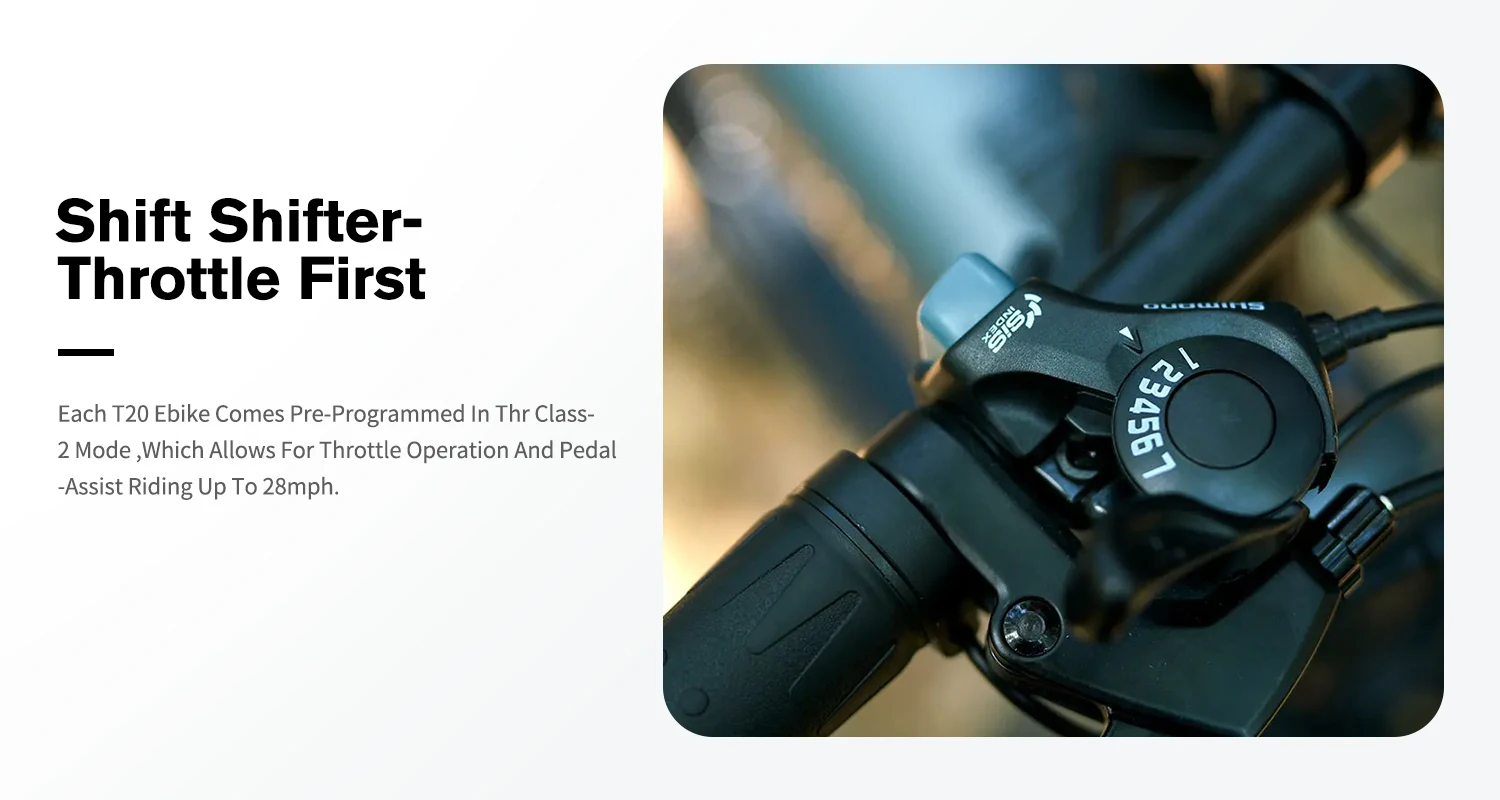

Gearbox	Shimano 7-speed drivetrain
Foot brace	20" mountain bike aluminum adjustable side bracket + black plastic adjustment legs + all black crystal label
fenders	Front and rear fenders are wrapped inside support, front fender with two support sticks
Max load	150kg
Mileage	60-150km
Size	Dimension 180*65*115cm，Packing Size 138.5*30*78cm

Details Images

Product packaging

Specification

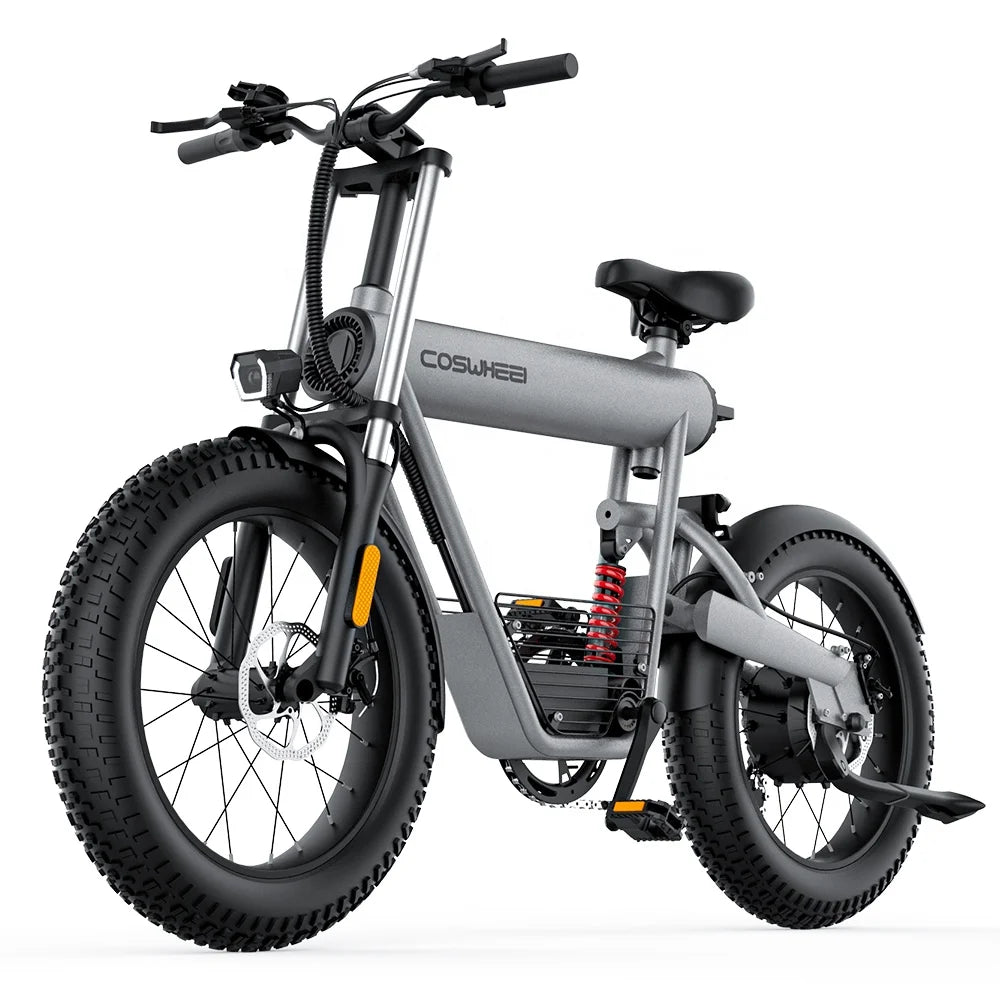

1.Coswheel T20 e-bike

2.Side reflector

3.Front wheel quick release

4.Front and rear fender screws

5.Hex tool screwdriver

6.Pedal

7.Charger

8.Manual
