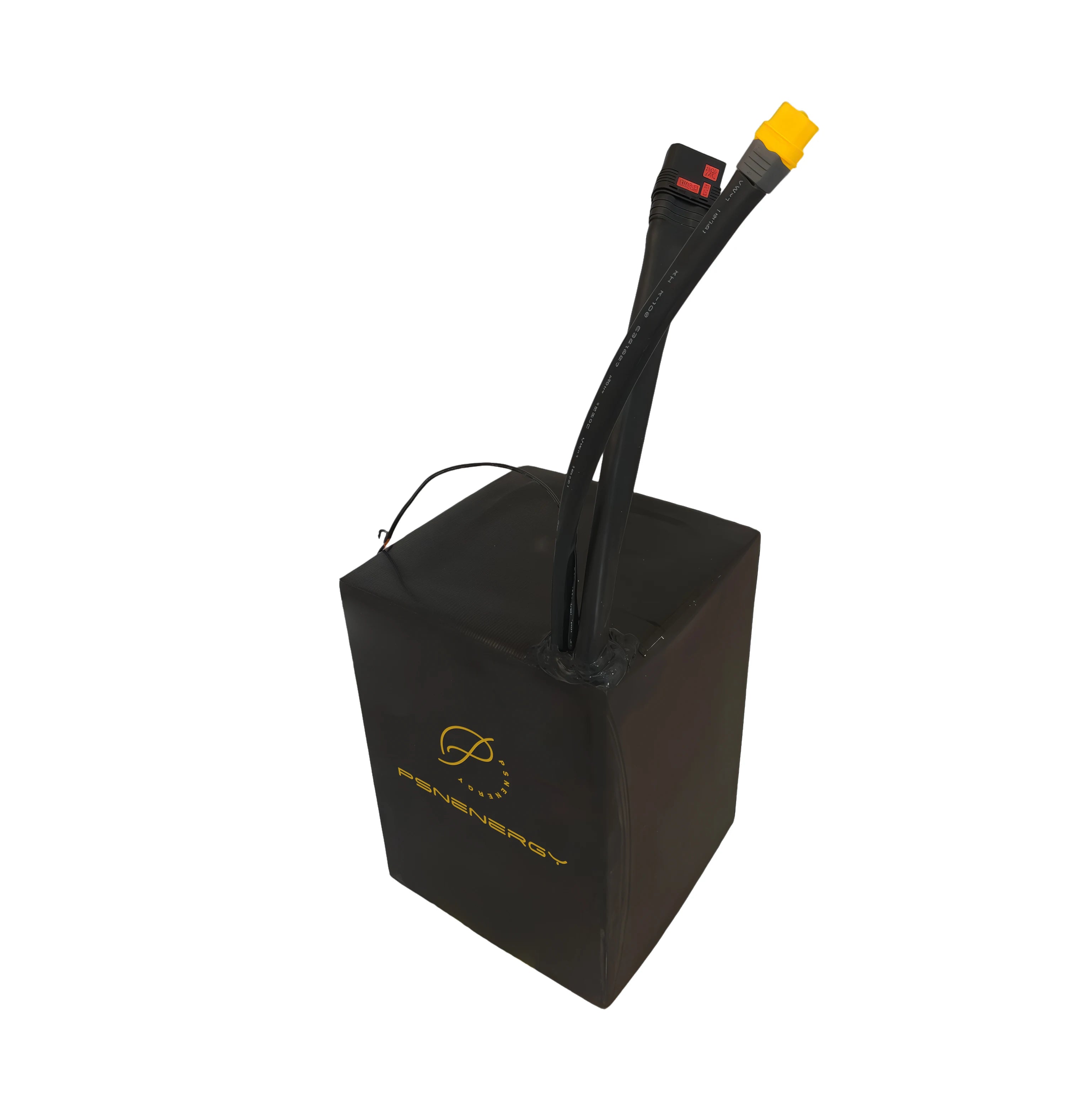

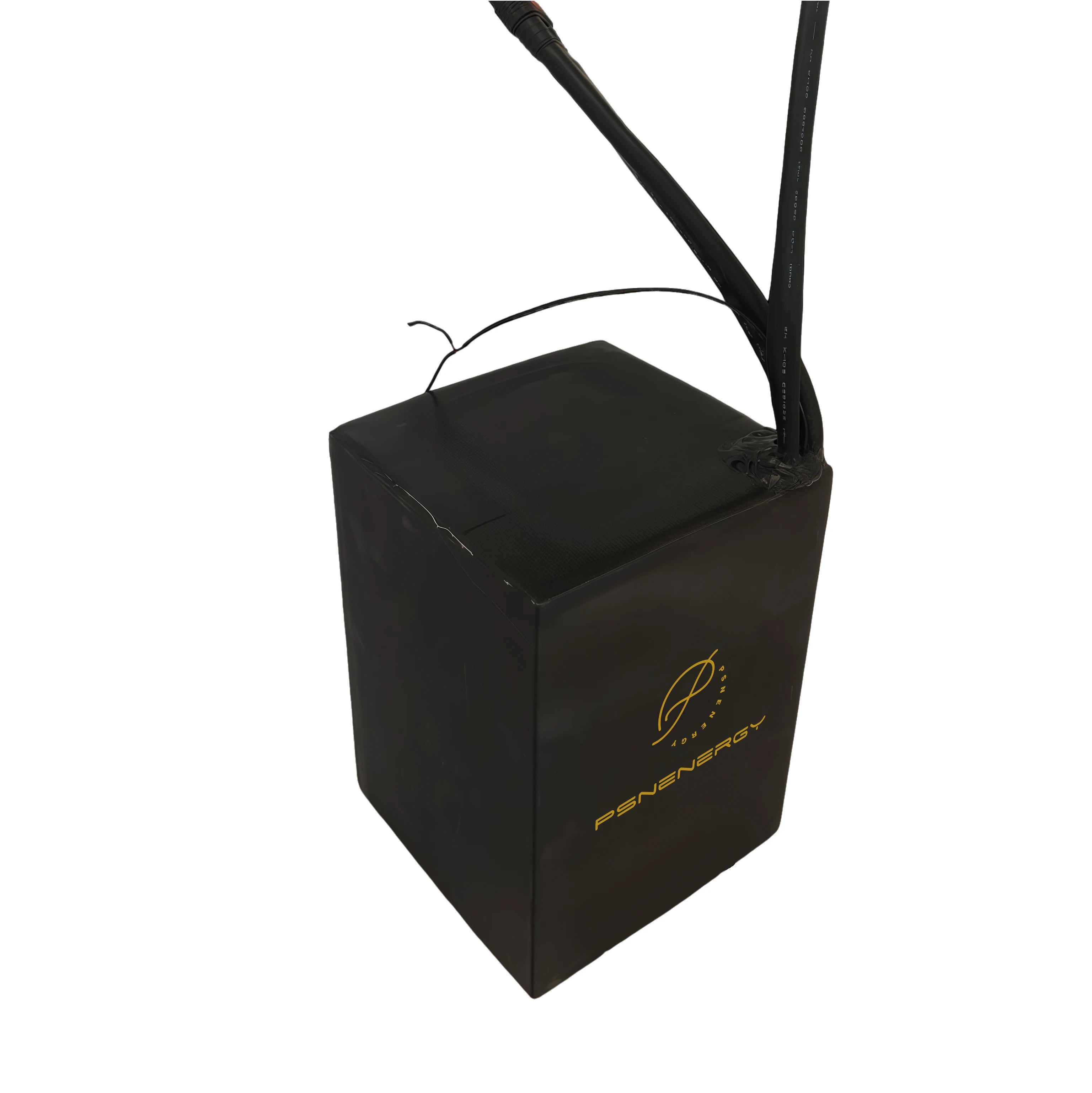

SPECIFICATIONS

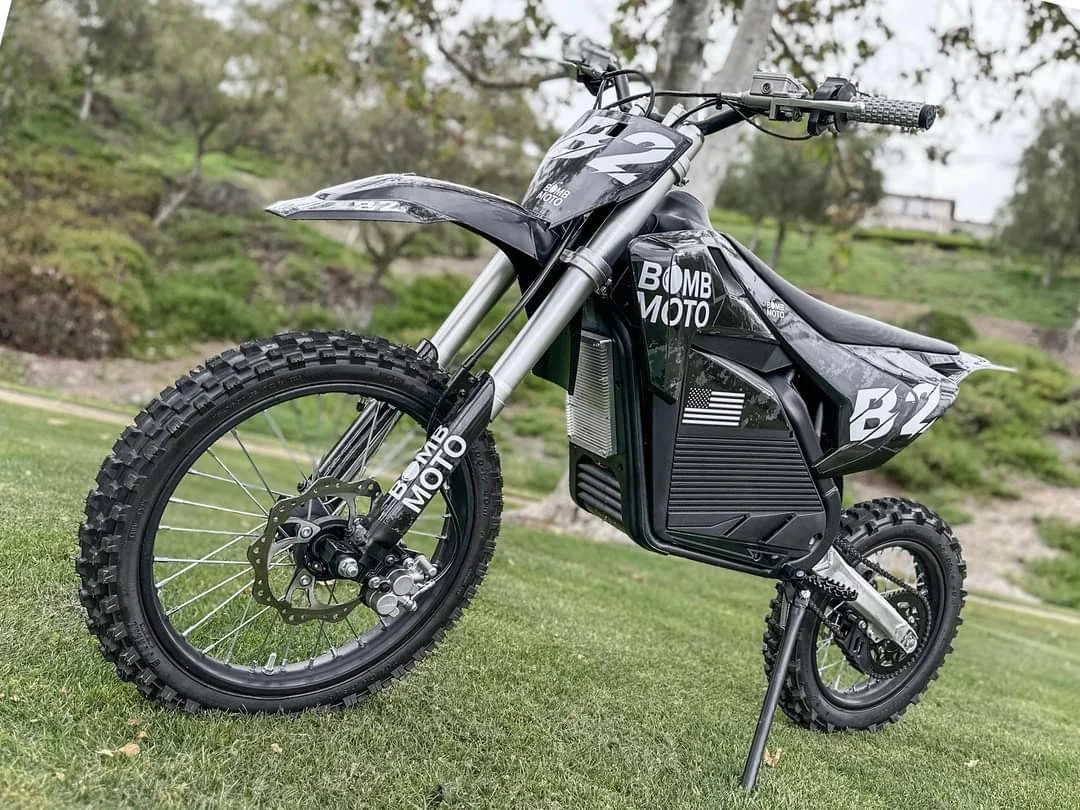

Application: off road ebike ,motorcycle ,scooter,dirt bike
Battery type: 21700 Rechargeable Li-ion
Condition: New
Customize: Yes
Discharge cut-off voltage: 56V
Maximum instantaneous current: 120A
Nominal Capacity: 20Ah (Customizable)
Nominal Voltage: 72V (Customizable)
Place of Origin: China
Placement on Vehicle: Not Specified
Size(mm): 7.5"*6"*8"(customizable)
Storage temperature(℃): -20℃~60℃
life: 500 times (80% of initial capacity at 0.2C rate, IEC Standard)
Features
Compact size suit for the dirt bike frame easily
Cooper composed nicked busbar cut down the heat
120A max output discharge.
1 year warranty
OEM is welcome
Item |

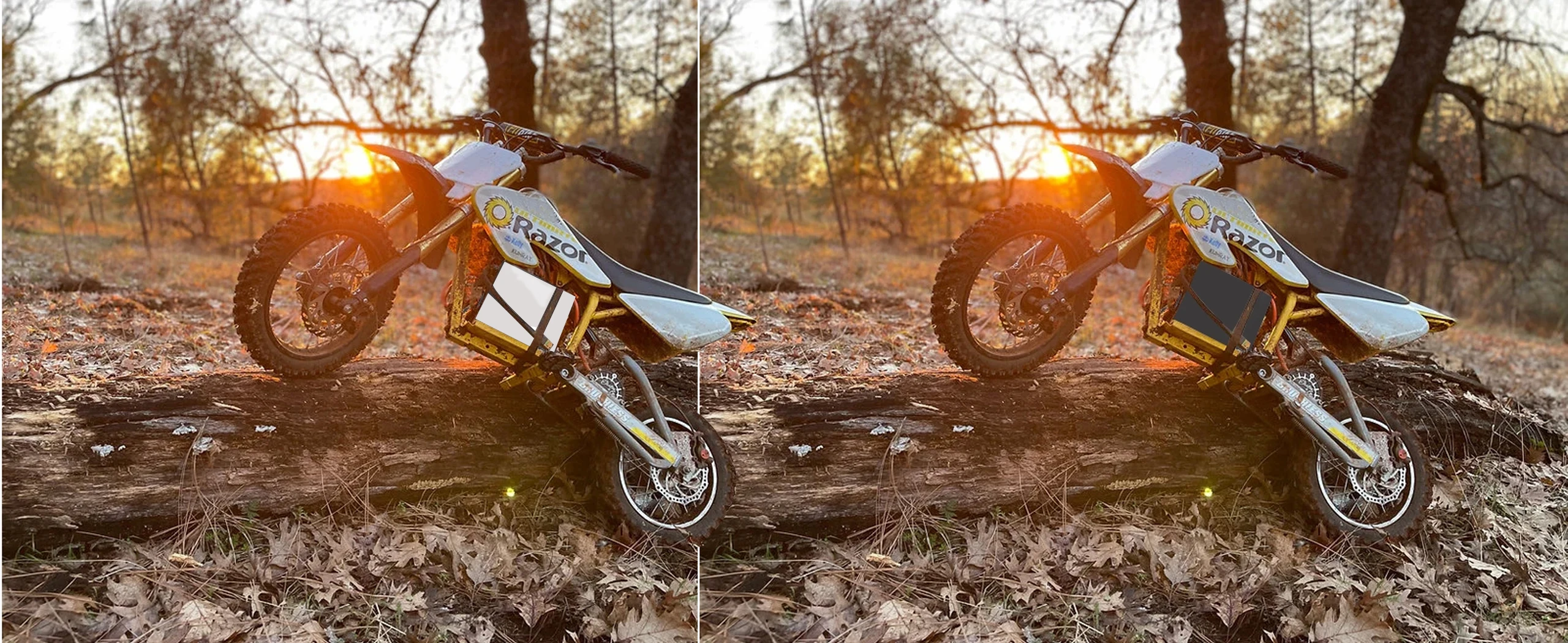

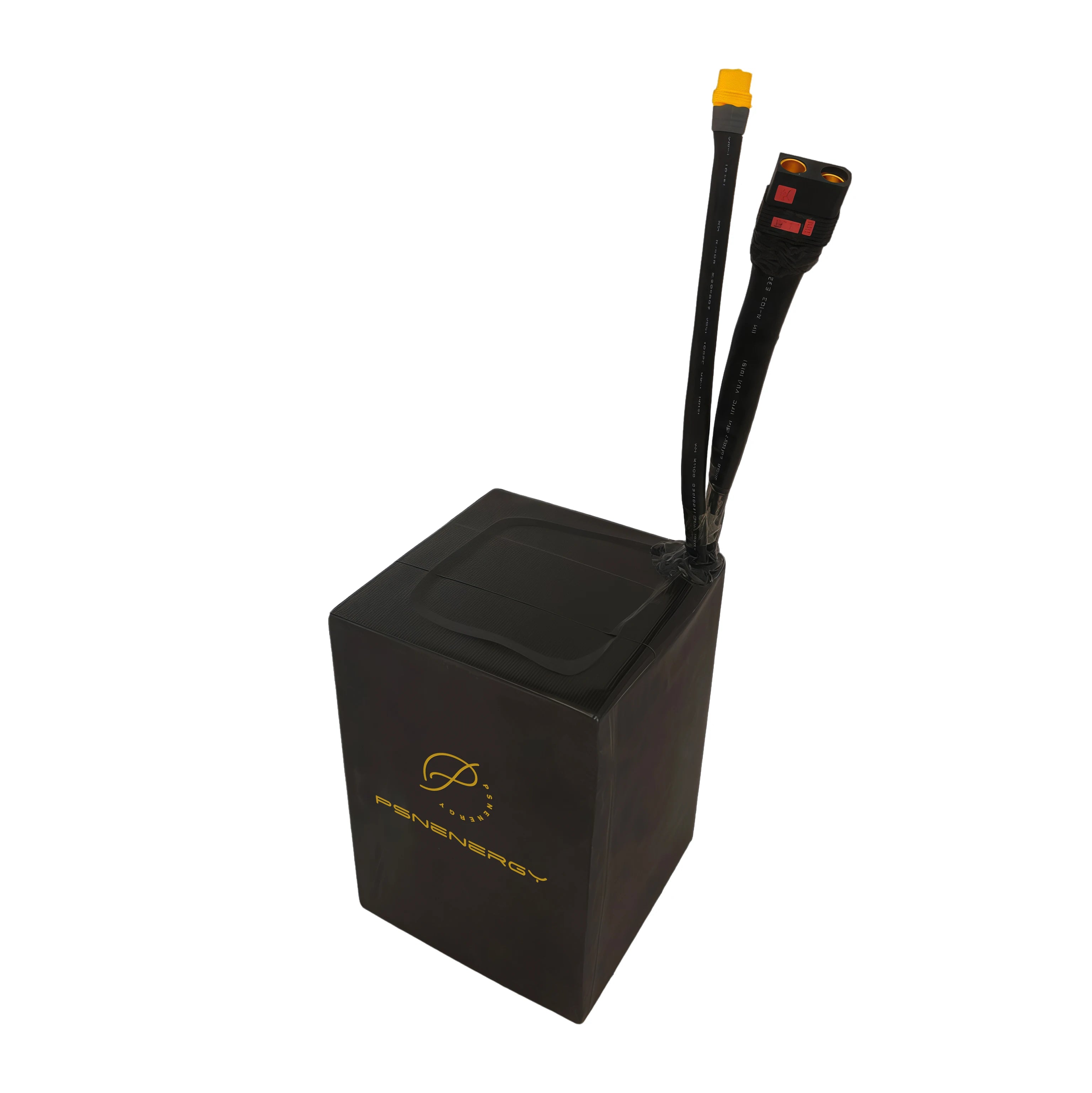

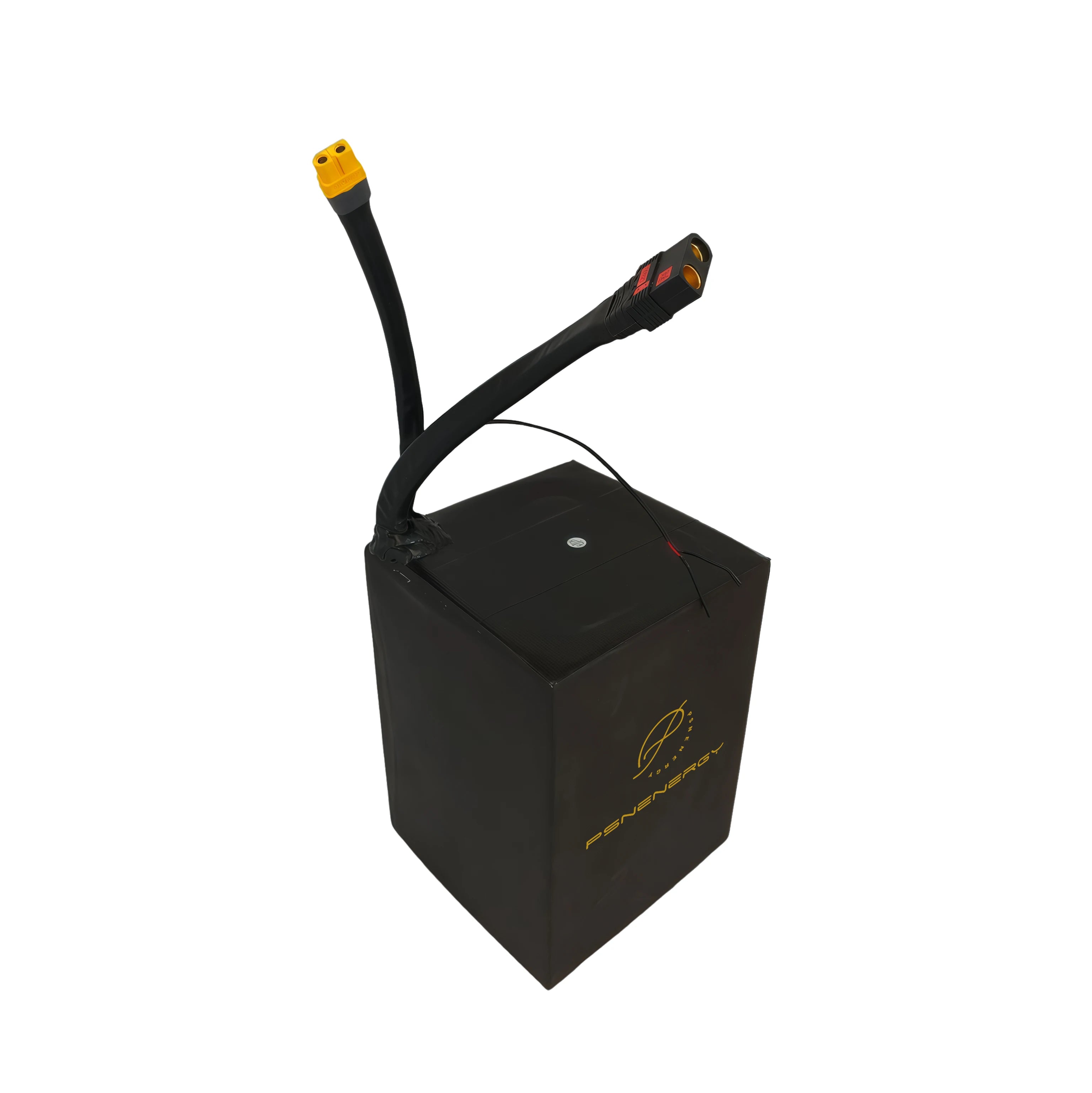

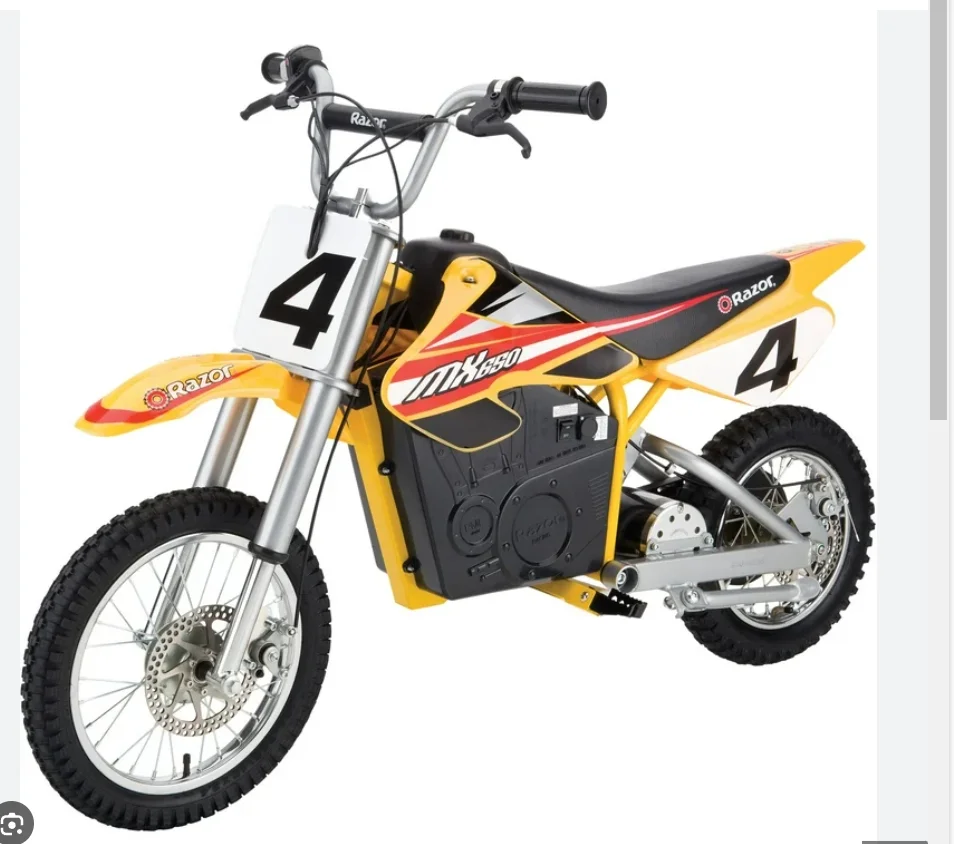

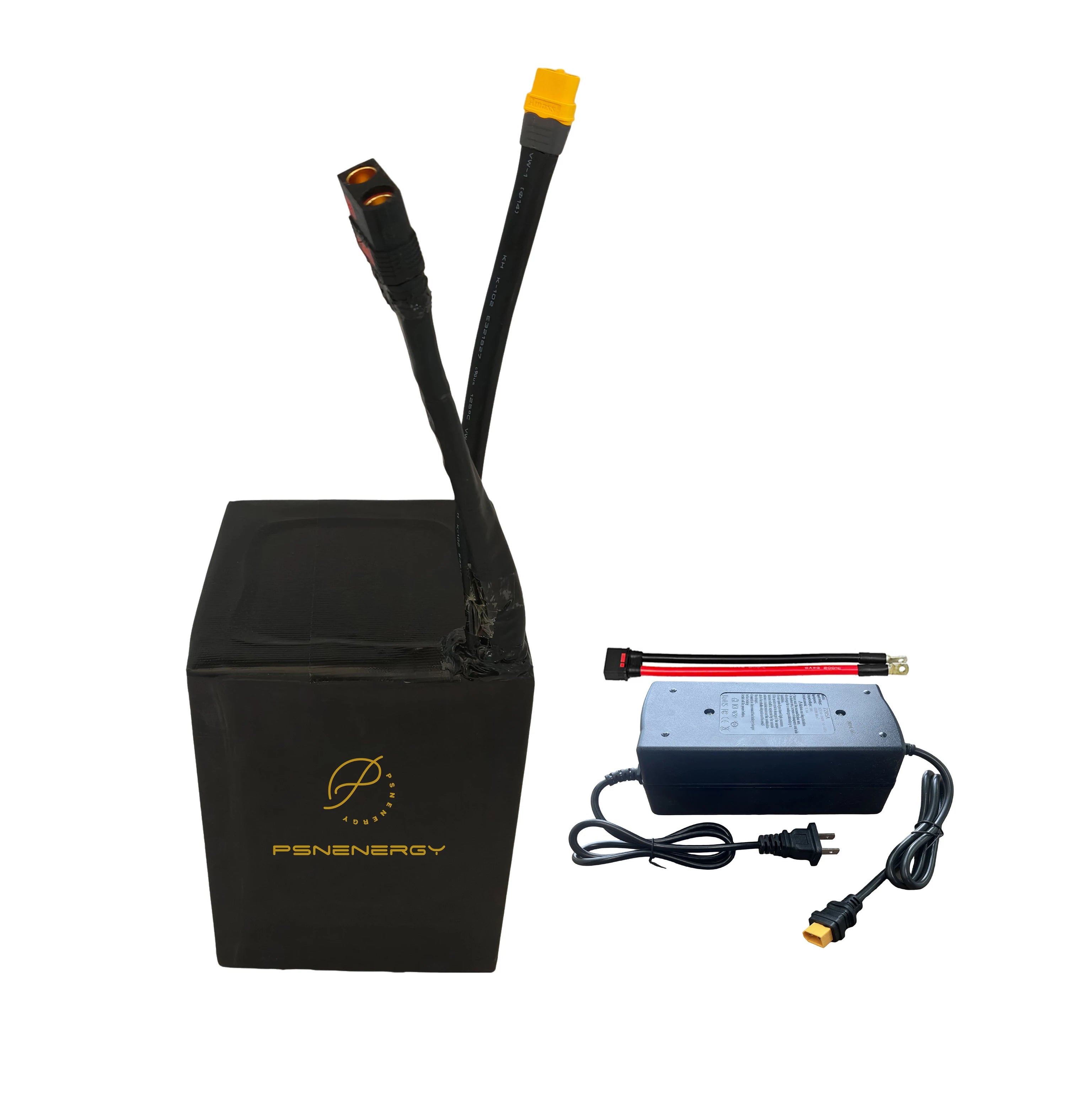

48V 72V 20ah 32Ah customer made high power rechargeable NCM lithium ion off road razor dirt bike upgrade battery |
Nominal Voltage |
48V/72V/96V |
Rate Capacity |
20Ah,24Ah,28Ah,32Ah,36Ah,40Ah (can be customized ) |
Max Continuous Discharge Current |
72V20Ah: 120AMP |
Max Continuous Discharge Current |
72V20Ah: 175AMP |
Max Support Rating Power |
72V20Ah: 8KW |
Max Support Pulse Power |
72V20Ah:12.6KW |
Charge Rating Voltage |
72V20Ah:84V |
Max Charge Current |
5A (can be customized ) |
Cell Type |
EVE 21700 40P(can be customized ) |
BMS |
ANTSmart BMS board |

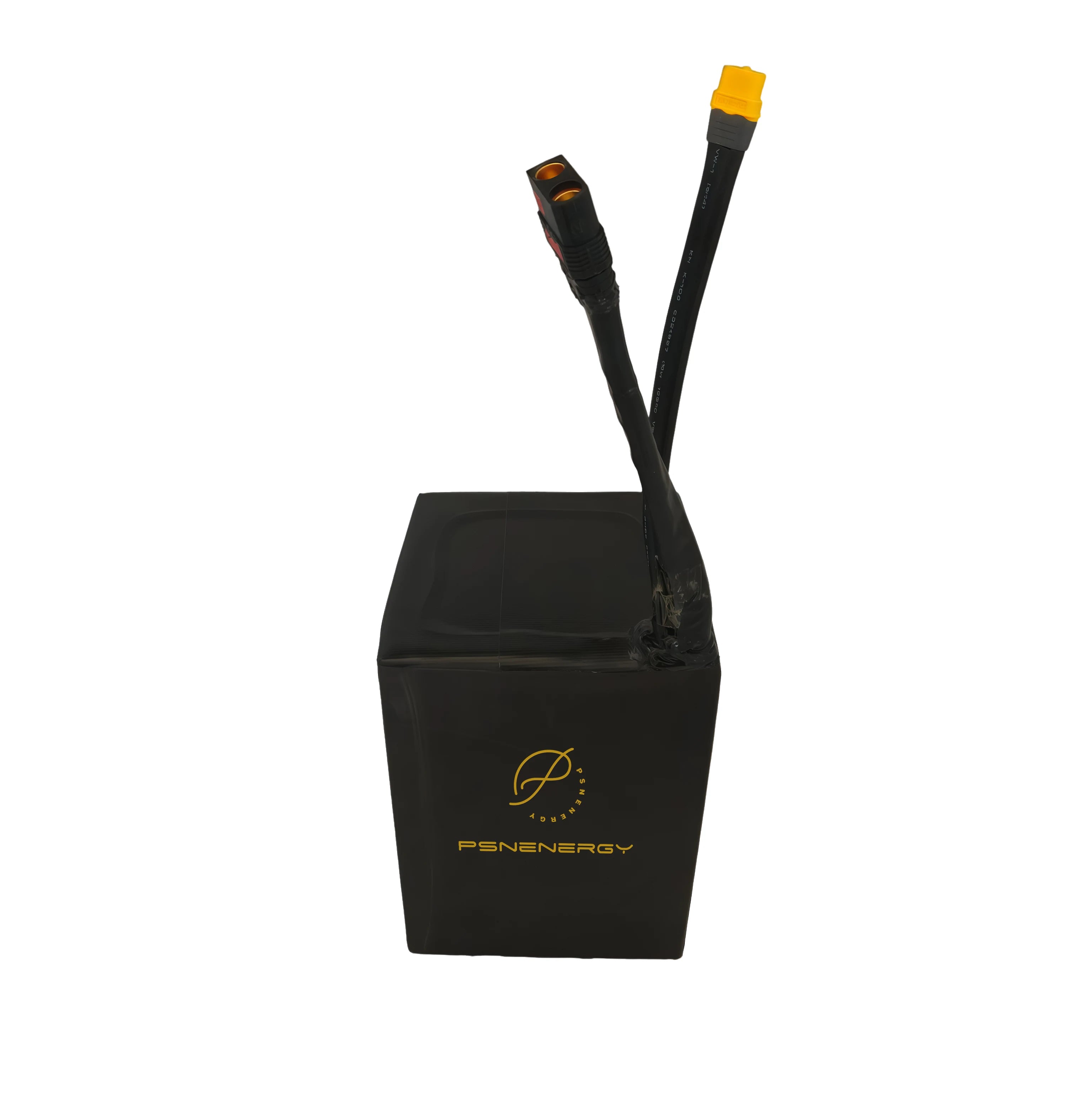

Discharge Port |
QS8 (can be customized) |
Charge Port |
XT60 (can be customized) |
Application |

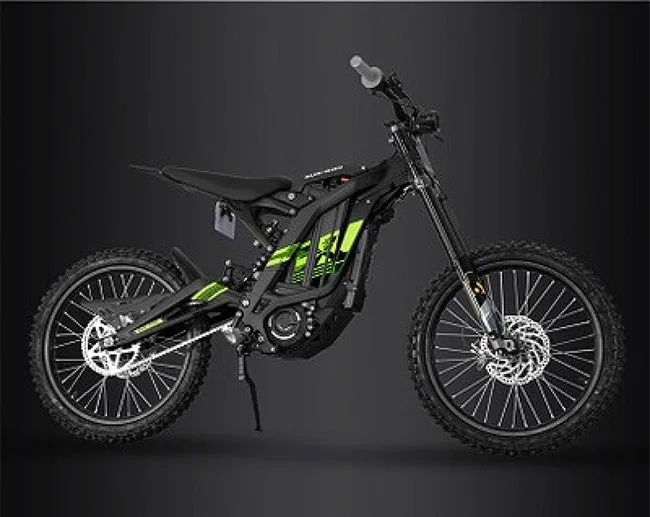

Off road ebike, Dirt Bike, Electric scooter,electric motocycle |
48V |
20Ah |
13S5P |
5.25*6*6.5 |
|
|
24Ah |
13S6P |
6"*6"*6.5" |
|
|
28Ah |
13S7P |
6.5"*6"*7" |
|
|
32Ah |
13S8P |
6.5"*6"*7.785" |
|
|
36Ah |
13S9P |
6.5"*6"*8.875" |
|
|
40Ah |
13S10P |
6.5"*6"*9.5" |
|
72V |
20Ah |
20S5P |
6"*6"*8.25" |
|
|
24Ah |
20S6P |
7"*6"*8.25" |
|
|
28Ah |
20S7P |
8"*6"*8.25" |
|
|
32Ah |
20S8P |
8.5"*6"*8.25" |
|
|
36Ah |
20S9P |
10"*6"*8.25" |
|
|
40Ah |
20S10P |
10.5"*6"*8.25" |
|
Excellent Performance
1. High-rate battery cell: Adopting 10C ultra-high-rate cylindrical battery cells, providing strong power to meet off-road needs.

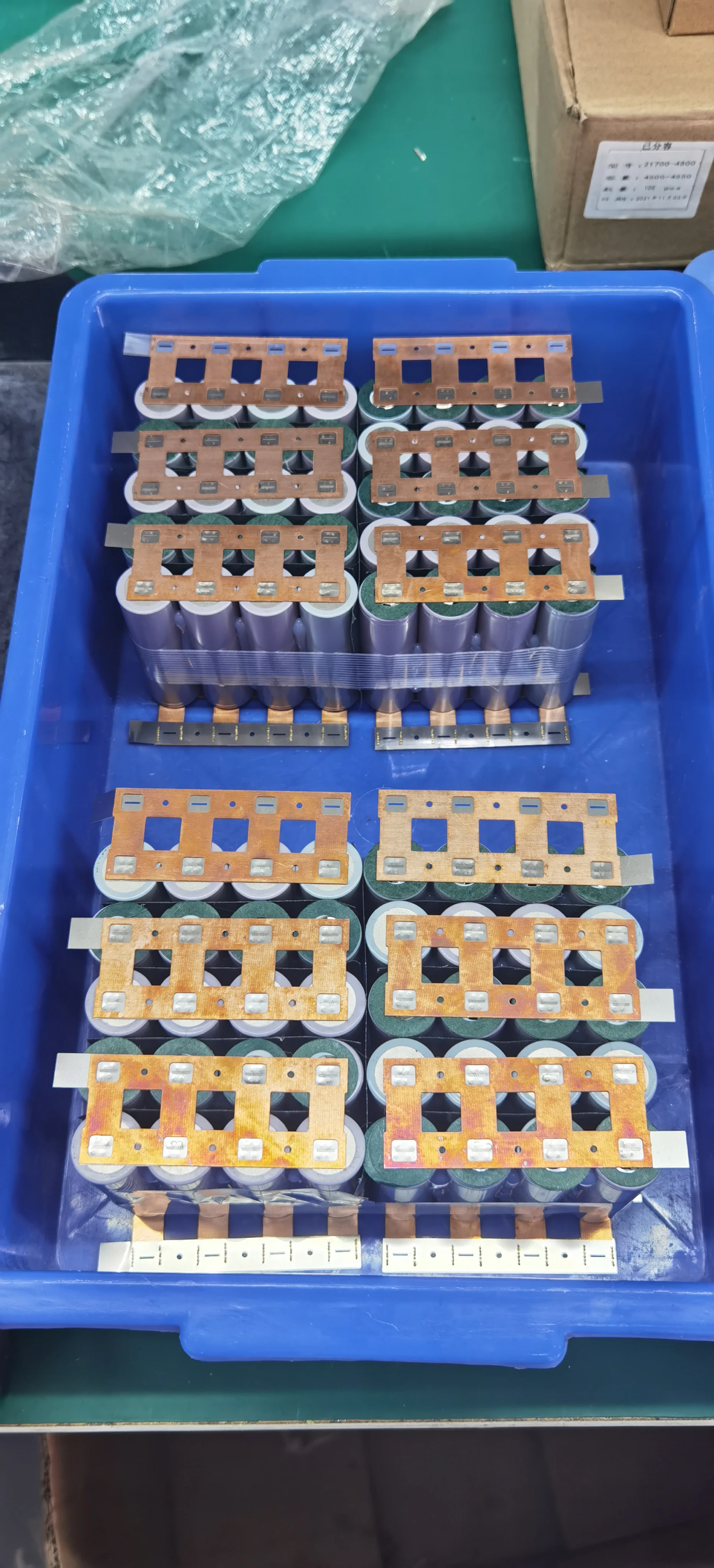

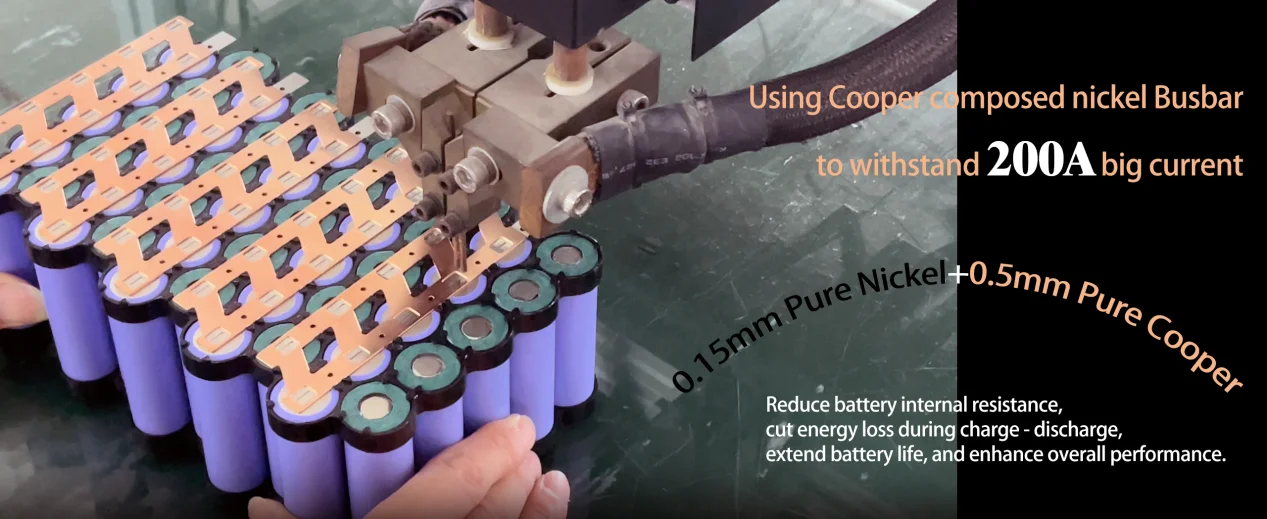

2. High-current passage: Connected by copper-nickel composite strips with ultra-low internal resistance, allowing large currents
to pass easily and ensuring strong power output.

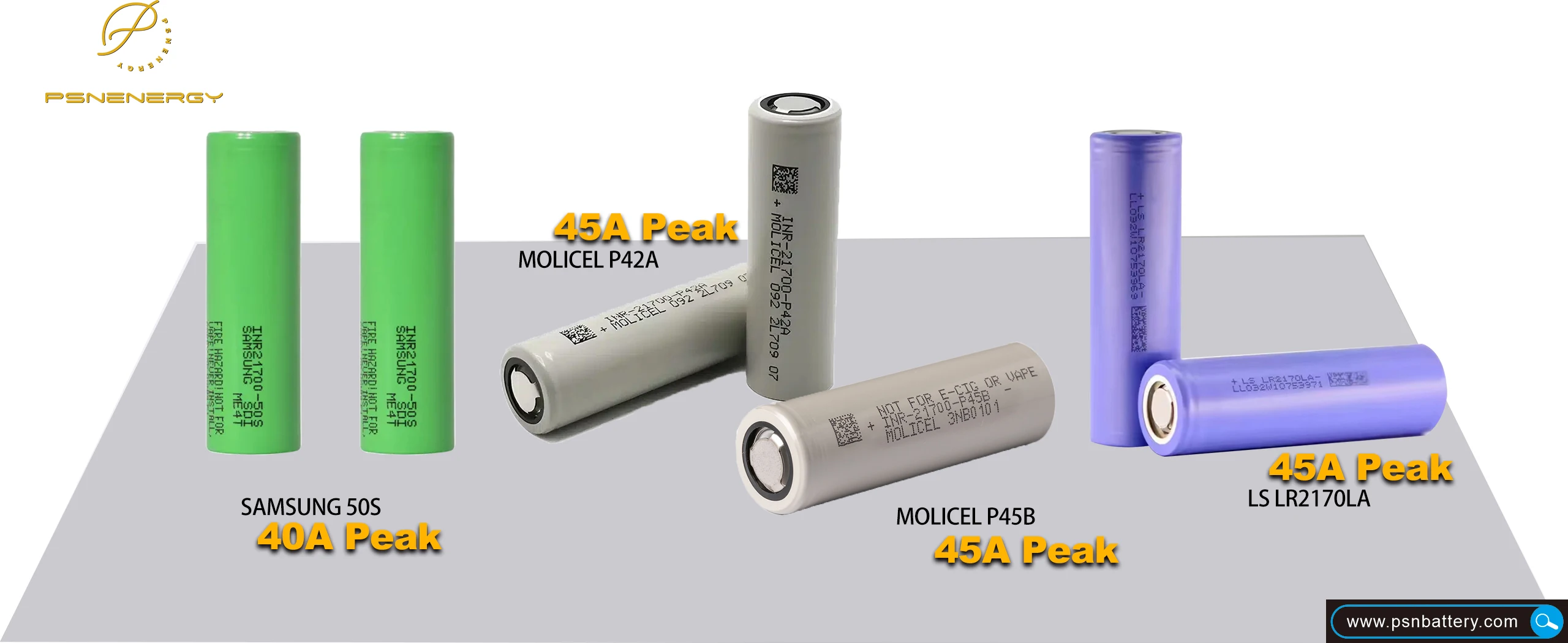

More Choice for The Cell
LISHEN, EVE, BAK,Molicel,Sumsung,LG etc. more different original battery cells for choosing based on client's requirements..Different cell cost also different.. Here listing price is lased on Lishen..If you need use other brand cell ,please check with us the final cost
Intelligent Management
1.Health monitoring: Keep track of the battery status at any time for convenient and timely maintenance.
2. Convenient use: Enjoy high-quality power experience without complicated operations. 3. Health monitoring: Keep track of the
battery status at any time for convenient and timely maintenance.
4. Convenient use: Enjoy high-quality power experience without complicated operations.
Strong Applicability
1.Compact size: Suitable for installation in most electric vehicles without occupying too much space.
2.Compact structure: Reasonably designed and can be stably installed in various electric vehicle models.
Excellent Quality
1.Exquisite craftsmanship: Adopting advanced production processes and strictly controlling every link to ensure stable product quality.
2. Authoritative certification: Passed multiple authoritative certifications, ensuring quality and allowing consumers to use it with confidence.

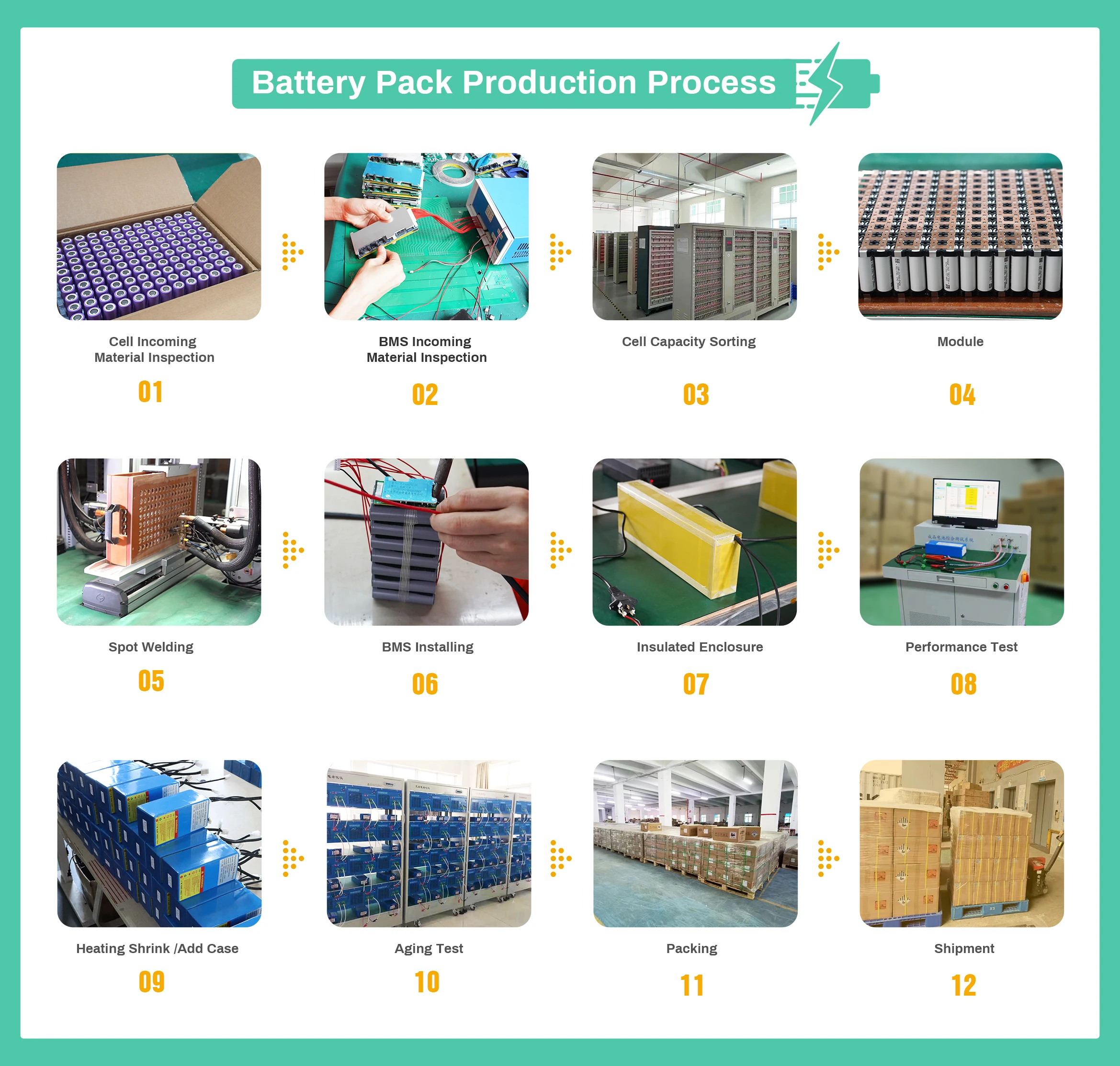

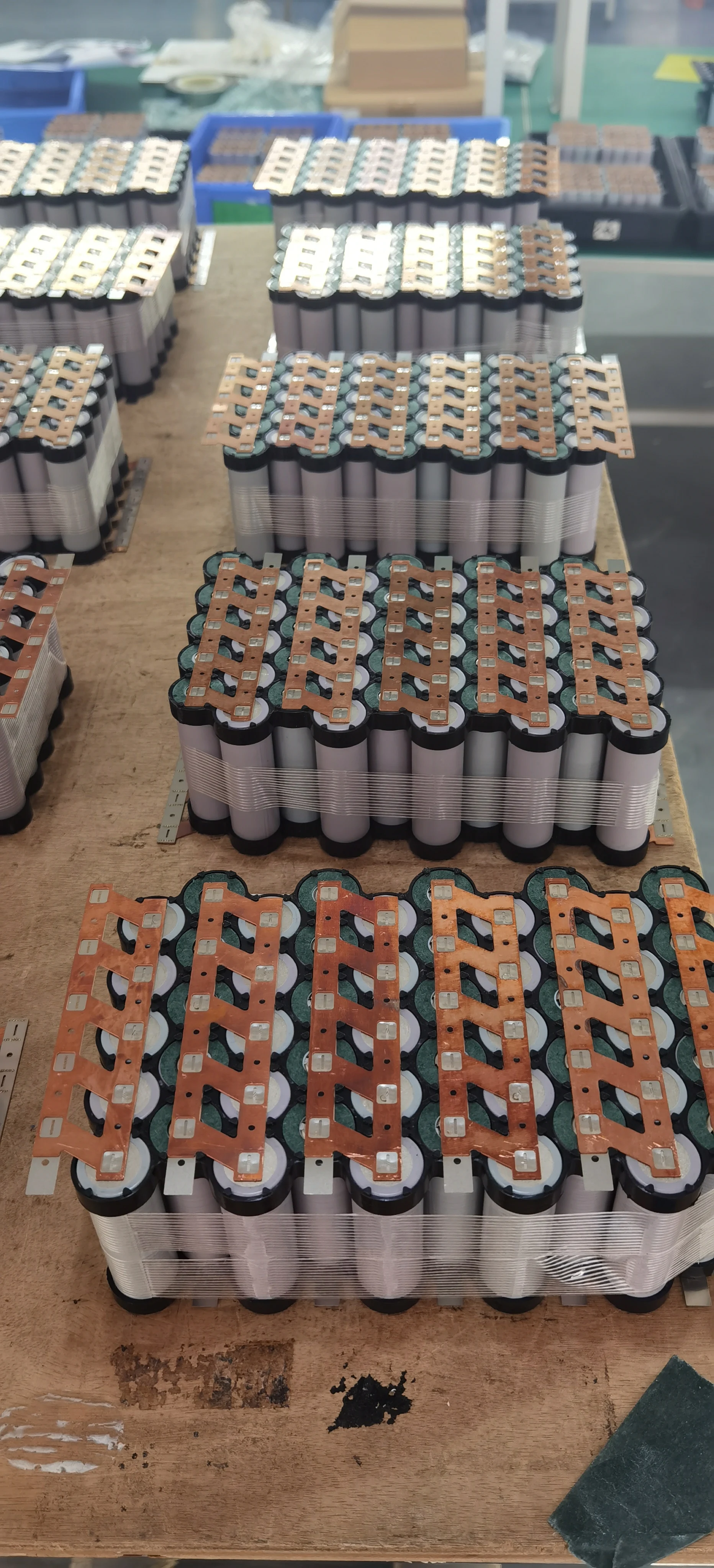

Know our workmanship better

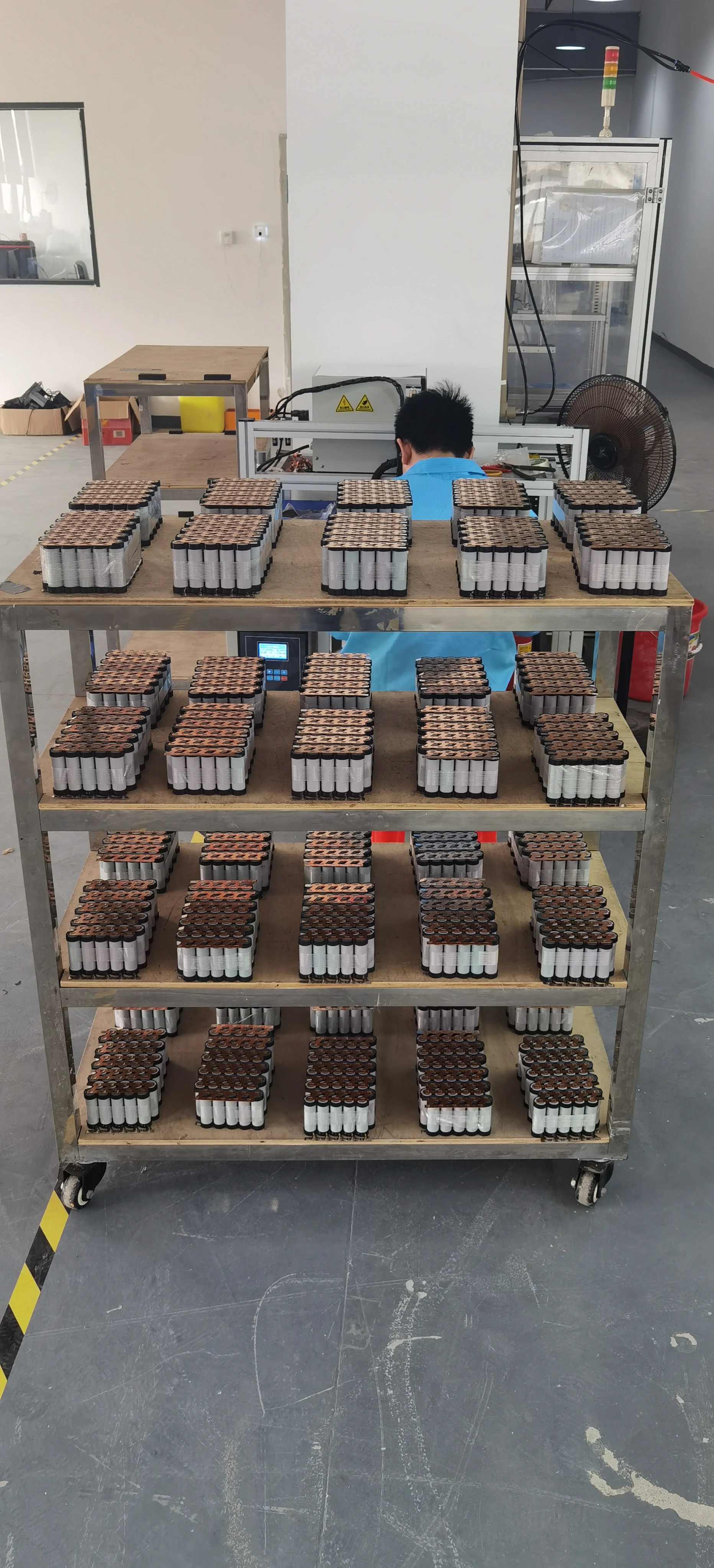

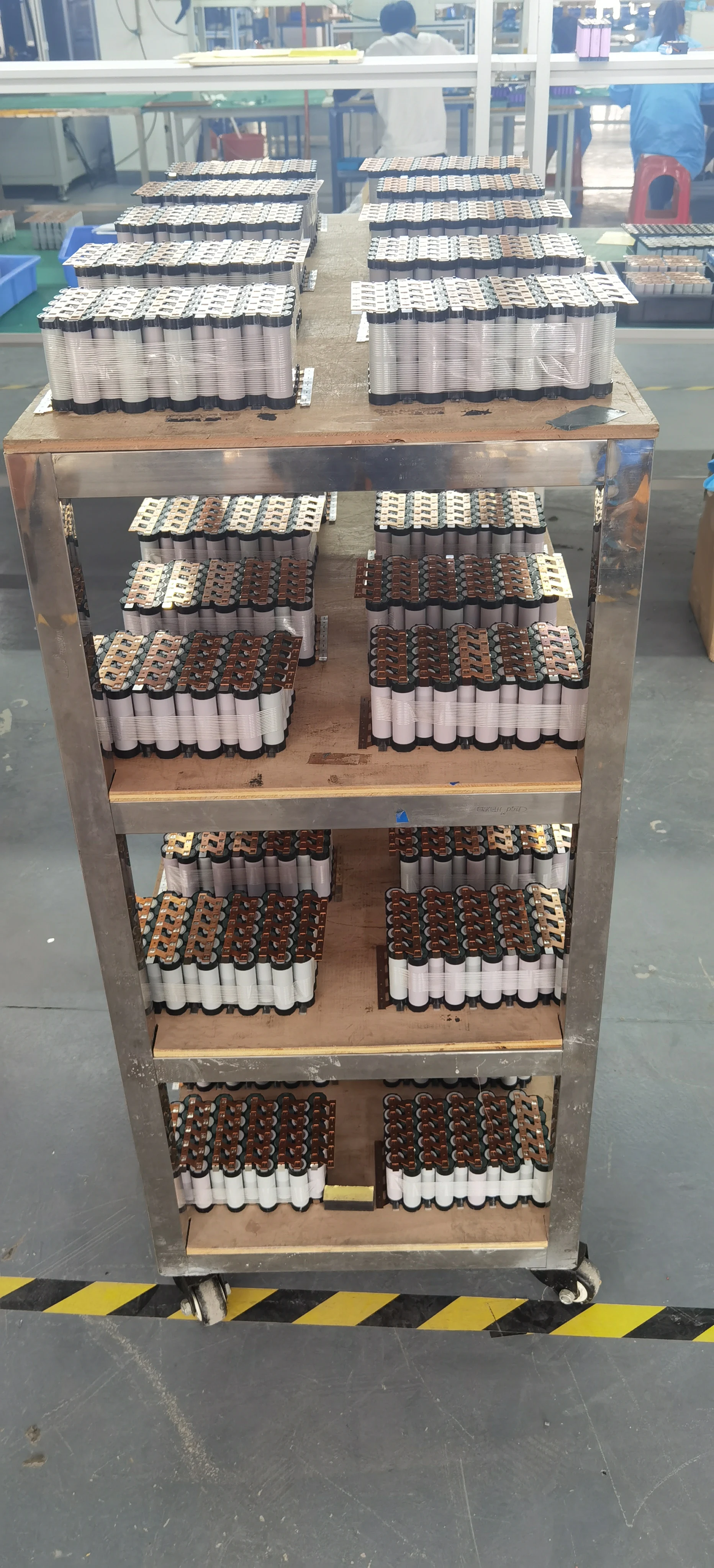

Always choose the famous brand A grade cell to promise the quality. Build the battery pack and sort the cell as per strict grade to promise the battery in high consistency
Build with the high quality BMS to protect the battery safe
Carefully insulation in order the safty
Customermade lithium battery pack for your electric bike/scooter/motorcycle
1 Just let me know the voltage and capacity you need?
2 The motor power of your electric vehicle
3 The controller limit current if you know also let us know.
4 BMS you prefer? smart with APP or just hardware version?
5 The max size of the battery you can accept?
Then we will back you the battery solution with price for you in 24 hours
Connector always made as per your request.

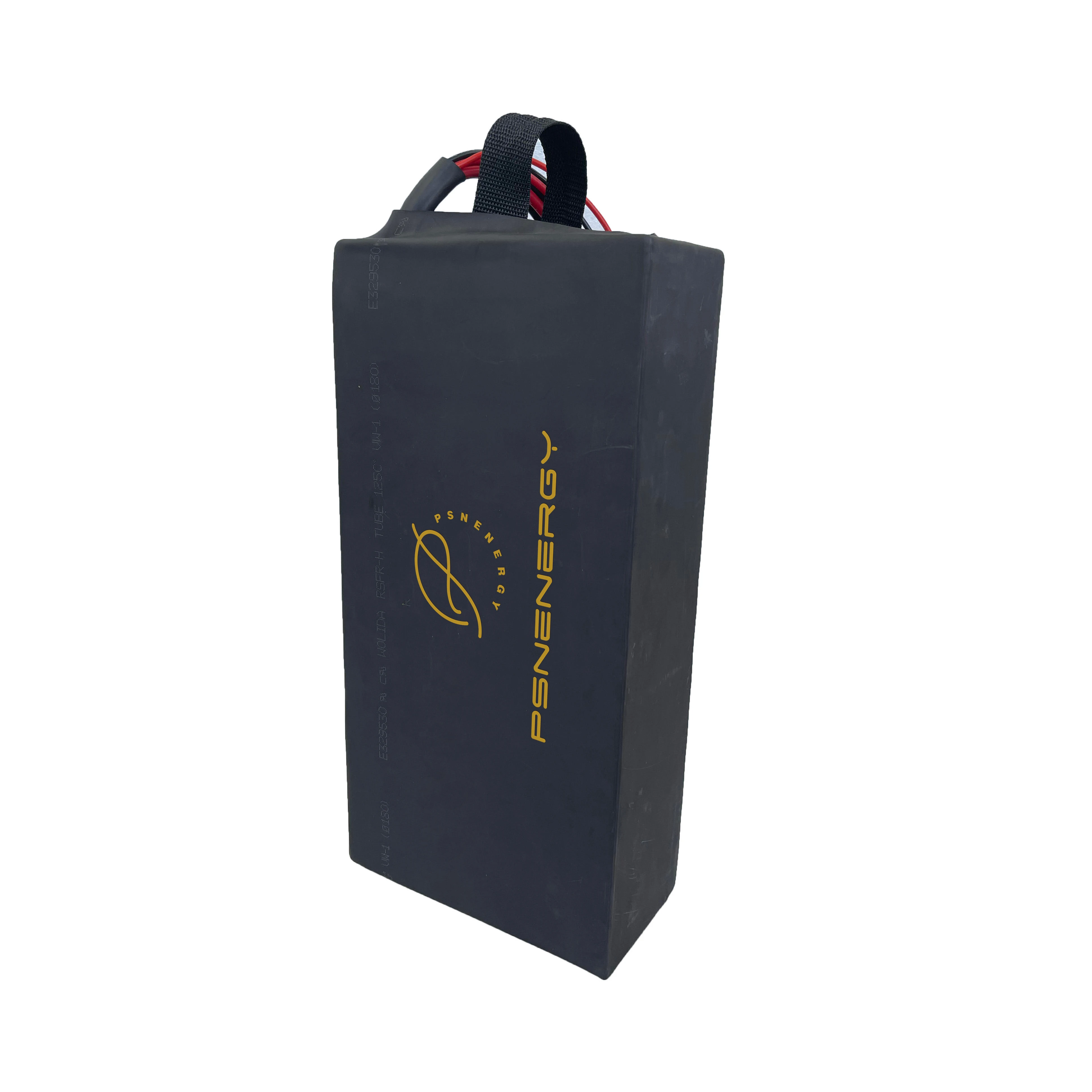

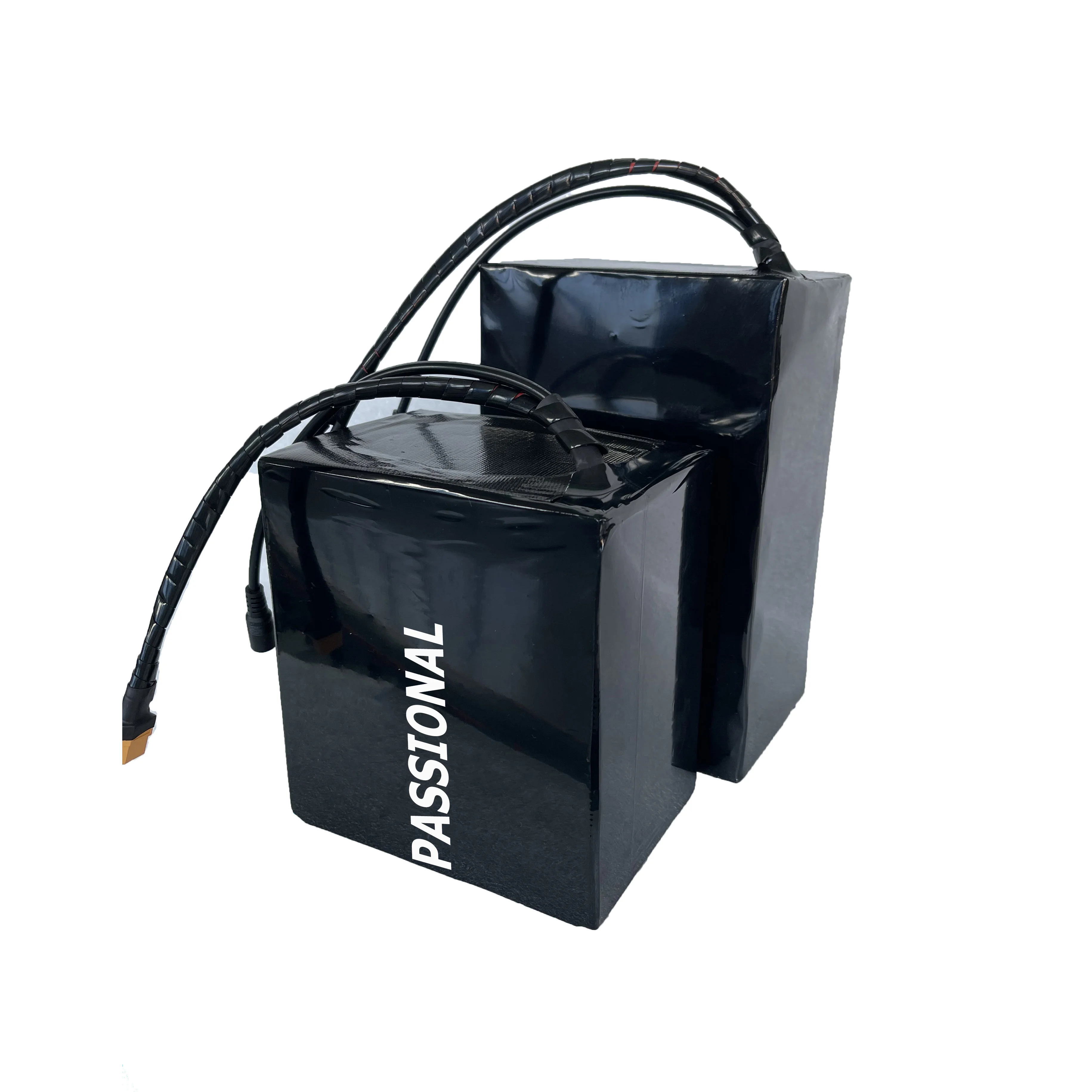

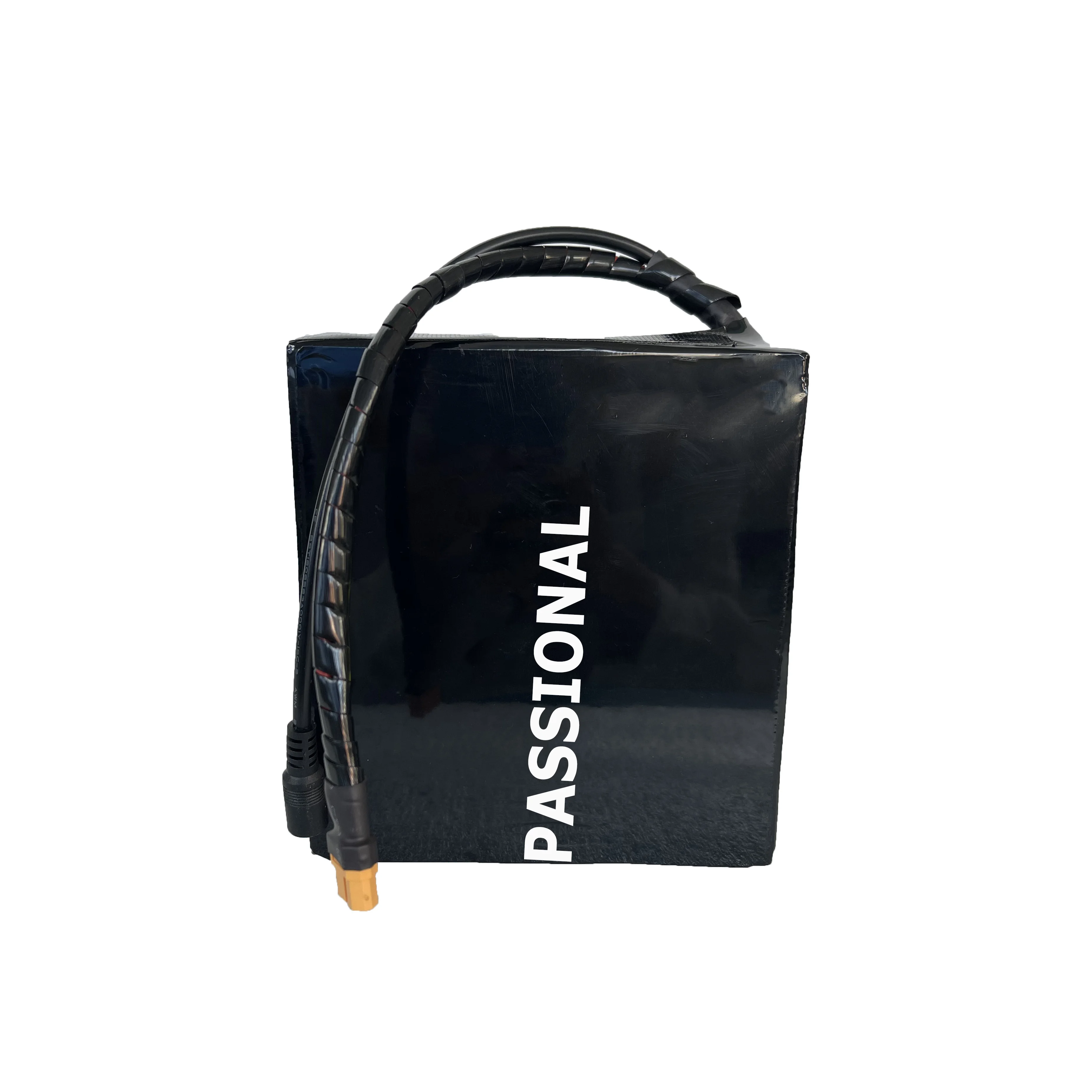

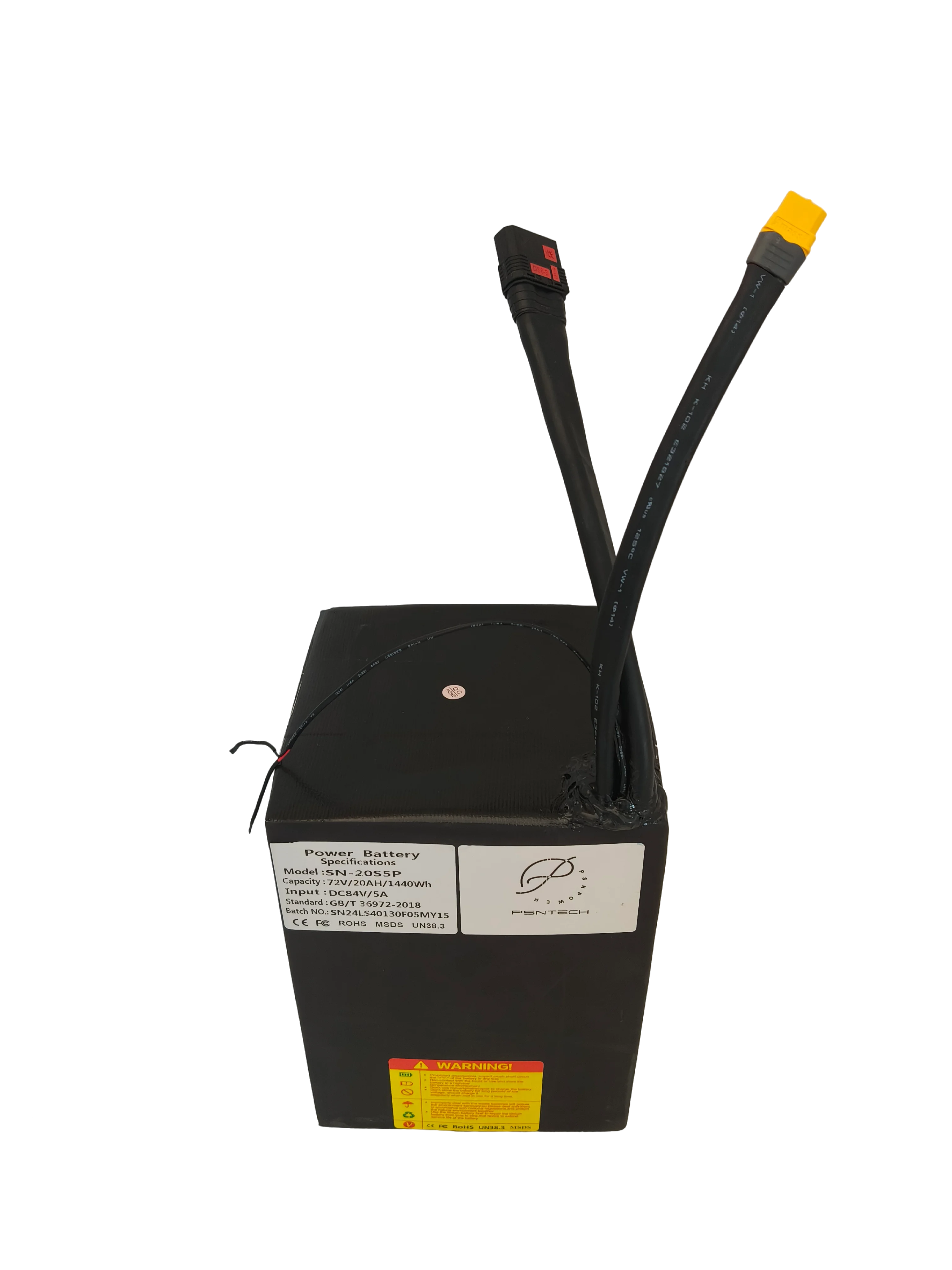

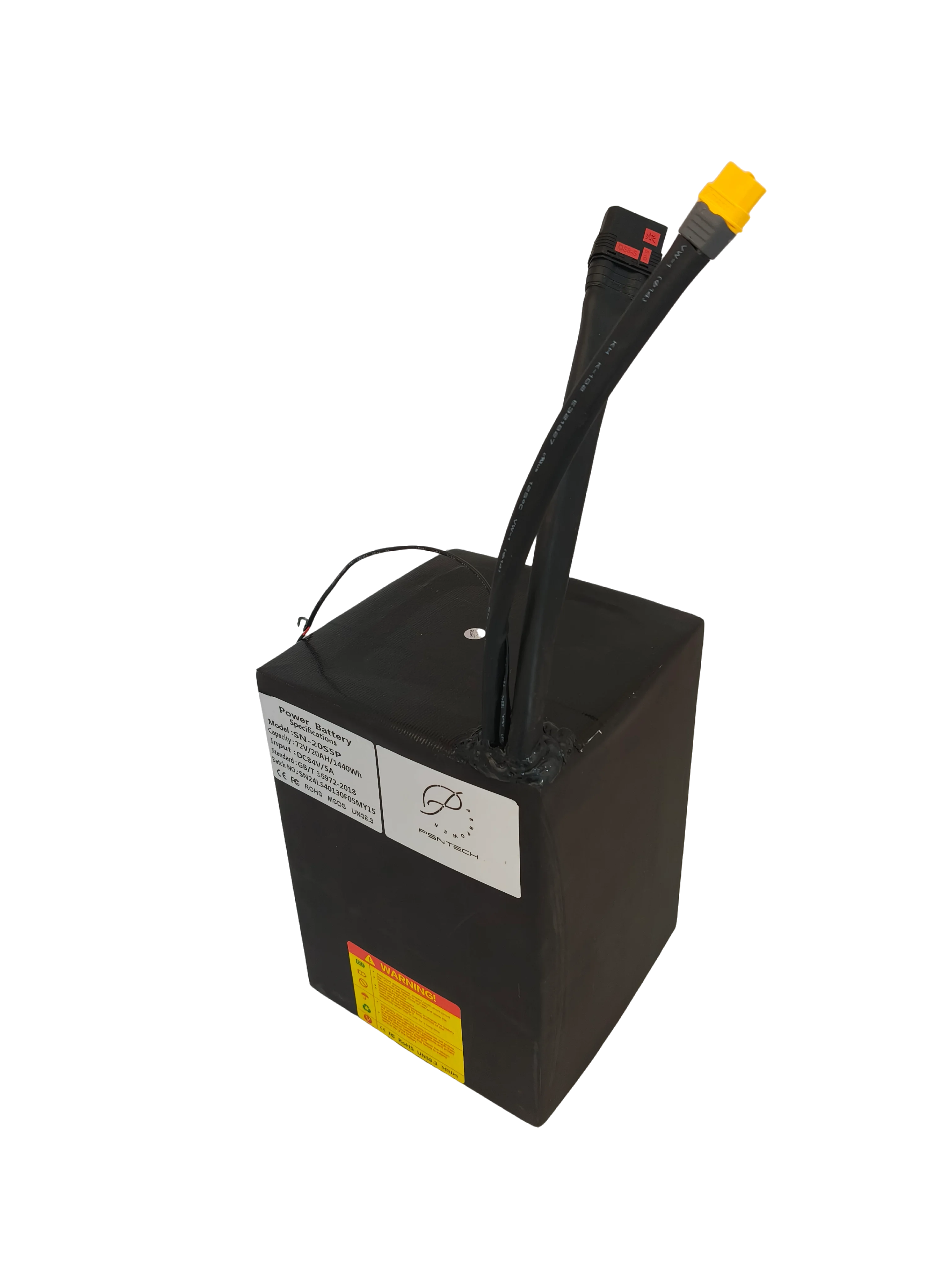

Basic wraping for the battery
Insulation plastic board case first ,then outside PVC or Thick tube shrink wrap.Usually it used for the ebike/scooter who has the good battery case already

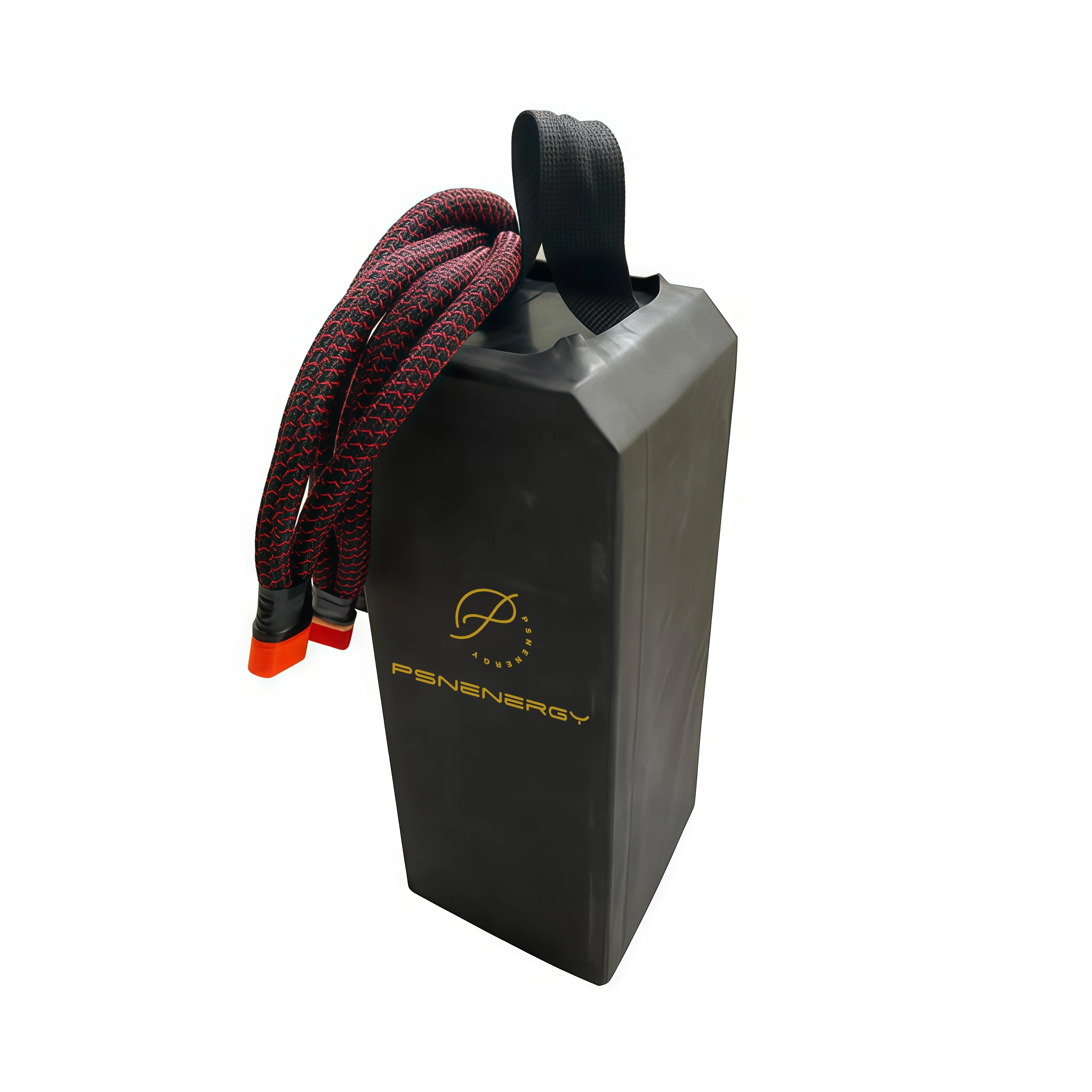

Also can add the outside case as per your ebike scooter battery space
Outside case can be the metal case.. it will help the battery water proof better. protect your battery
If you need extra case please contact with our sales people.. usually it will cause you extra 30USD
Our Team
Skillful sales and engineer team always keep online..
Once you need we will always here and back you the offer and solution in the first time
About the Shipping
1.Transportation to USA:By sea+Express(DDP,Tax free)
ETD:5-8 days
ETA:25-35 days after sailing(This is the delivery time for most orders. Please wait patiently or contact us online)
The tracking will be update after pick up by local express.Usually it will take around 15-25 days after sailing.
2.Transportation to EU:By railway+Express(DDP,Tax free)
ETD:5-8 days
ETA:30-45 working days after sailing(This is the delivery time for most orders. Please wait patiently or contact us online)
The tracking will be update after pick up by local express.Usually it will take around 25-40 working days after sailing.
3.We can't deliver the following address directly:
USA: Military address and PO box address are not
acceptable; Puerto Rico, Virgin Islands, Guam, Alaska Note: Hawaii does not include customs duties and requires additional
freight, Please contact us online.
Portugal: Azores and Madeira
Spain：Canary Islands, hueda and melilia
Russia: Kamchatka Peninsula
Other:Some remote areas not listed，Please provide shipping address and zip code to to us to check.
1. who are we?
We are based in Guangdong, China, start from 2009,sell to North America(30.00%),Eastern Europe(20.00%),Southeast Asia(20.00%),Mid East(10.00%). There are total about 5-10 people in our office.And 80-100 people in our factory
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment ,and one year warranty
3.what can you buy from us?
lithium battery pack,cell,BMS broad,Battery tester,Battery accessories. all the goods related to lithium battery pack
4. why should you buy from us not from other suppliers?
Create a full supporting service for lithium batteries, and realize one-stop lithium battery support, with complete categories, high quality and quantity, to meet the needs of the lithium battery industry for different products.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,HKD,GBP;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
