SPECIFICATIONS

Applicable Industries: Printing Shops

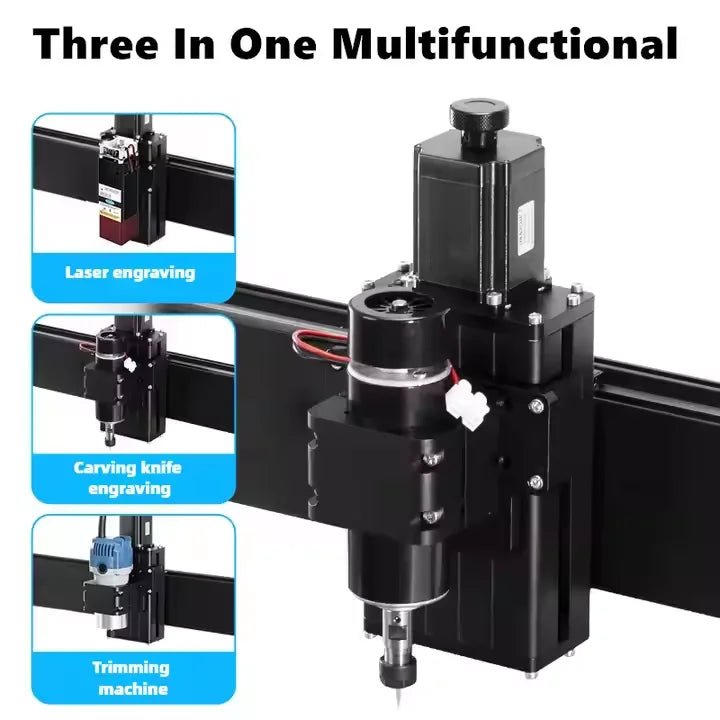

Function: Cutting Engraving Carving Milling

Keywords: High powerful Spindle Router

No. of Spindles: Multi

Product name: 500W Spindle Mini CNC Router Machine

Spindle Motor Power (kw): 0.5KW

brand name: tebak

cnc or not: CNC

controlling software: GRBL software

core components: Motor,Bearing

dimension(l*w*h): 650*532*320mm

key selling points: Easy To Operate

machine type: CNC Router

machinery test report: Provided

number of axes: 3

place of origin: Hebei, China

positioning accuracy (mm): 0.1

range of spindle speed(r.p.m): 100 - 11000 rpm

repeatability (x/y/z) (mm): 90

travel (x axis)(mm): 430

travel (y axis)(mm): 390

video outgoing-inspection: Provided

voltage: other

warranty: 1 Year

weight (kg): 16

Product Description

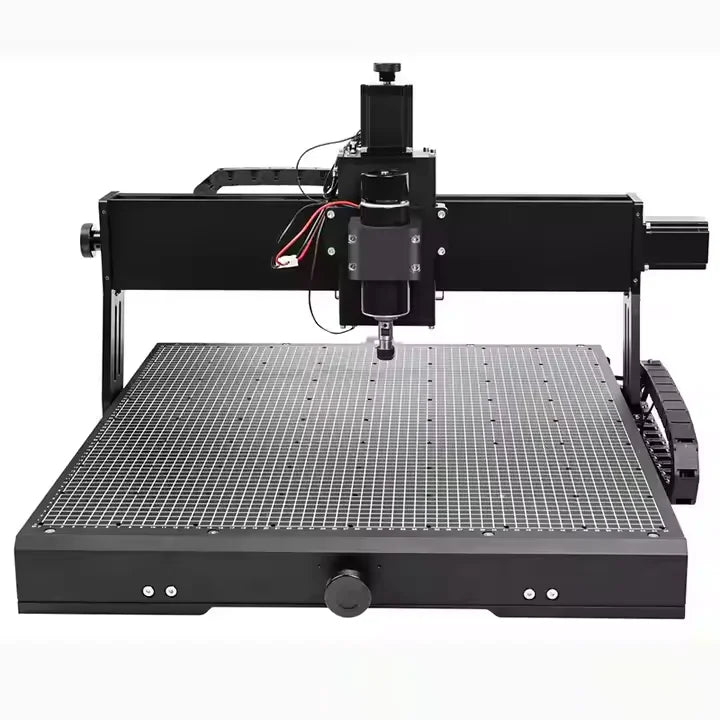

4540 Plus 500W Desktop CNC Machine with High-Precision Square Guide Rails and Ball Screw for Metal Acrylic and Wood Cutting

Model	CNC 4540

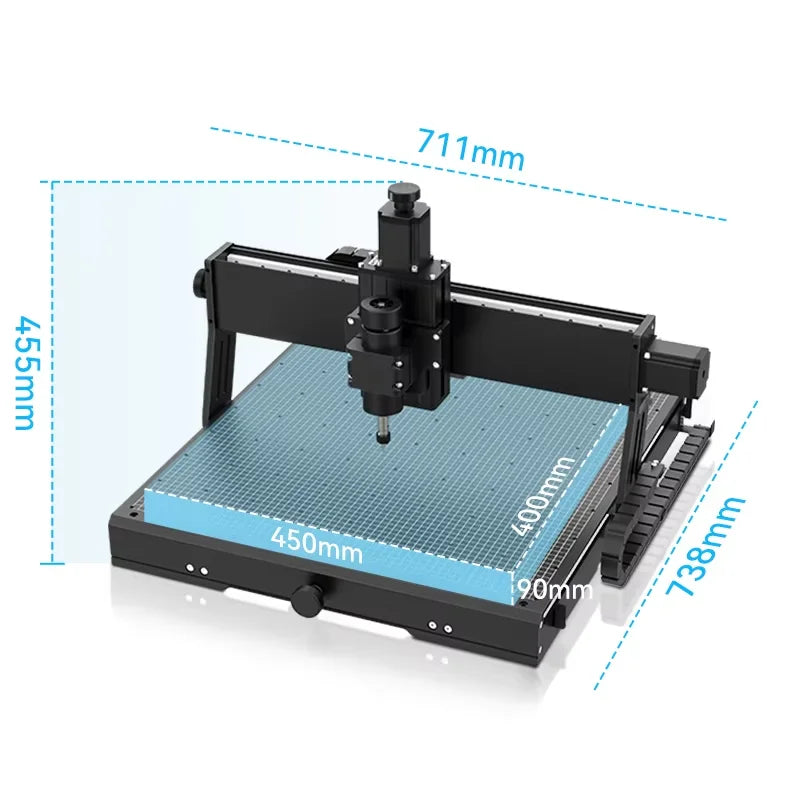

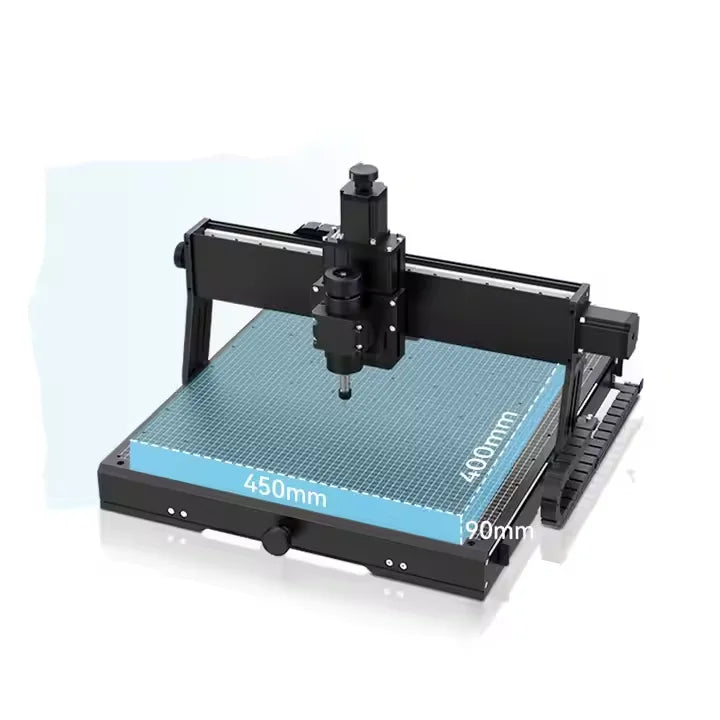

Working Area	17.72" x 15.75" x 3.54" (450x400x90mm)
Frame Size	25.59" x 20.94" x 12.60" (650x532x320mm)
Max. Speed	11000mm/min
Stepper Motor	NEMA 17(42 x 48mm)
Limit Switch	X, Y, Z (both ends)
Control Software	GRBL Control
Operating Systems	Windows XP/7/8/10, Linux, Mac OS
Control Method	Computer & Offline Controller
Engraving Objects	Stainless steel, wood, aluminum, brass, plexiglass, leather, PCB, MDF, acrylic, resin, nylon, carbon fiber, PCB, PVC, et

Packing&Shipping

Company Introduction

Company introduction Hengshui Mengshang Trading Co., Ltd. is a main professional supplier in Product Machine,CNC Carbide inserts, Turning tools and Milling tools, Our brand is TEBAK, Design and Sales. We insists the principles of "High quality, Competitive price and Excellent service."We are leading OED&ODM manufacture many years of experience in this filed. TEBAK have various kinds of productc and they are 70% for expert. Our customers are from all over the world, such as North America, Europe, South America, the Middle east, East Asia and Africa. The quality control standards are based on ISO9001 certifications. TEBAK relies on advanced automatic machining center and complete testing testing method, control all aspects of production and operation according to the standard process. We have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the international marked. Welcome send inquiry to us, we will provide high quality products and excellent service for you!
